RS series

Adopted rolling diaphragm and measuring capsule for pressure control system.

Features

Servo-balanced system comprising rolling diaphragm and measuring capsule provides exceptionally precise and stable pressure control with constant bleed feature.

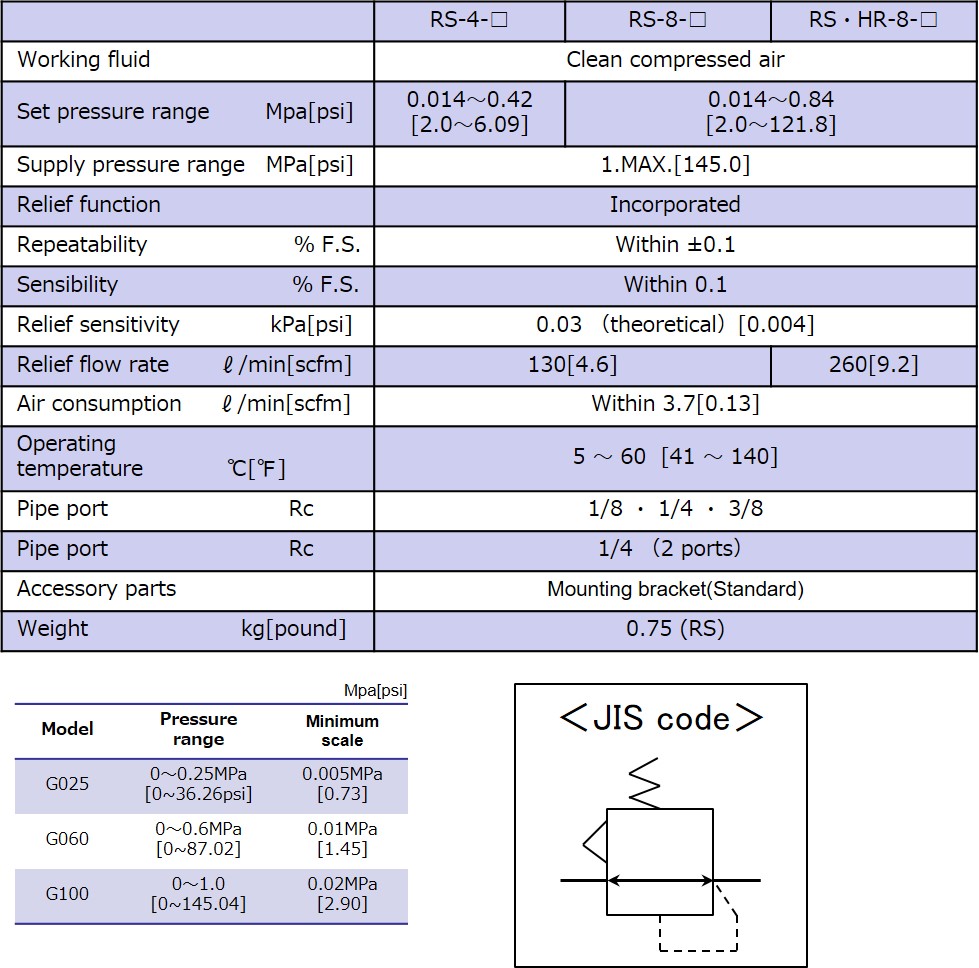

High precision pressure control with sensitivity 0.1%F.S., repeatability ±0.1%F.S. is available.
Very superior in relief, pressure, flow sensitivities. Particularly, minimum relief pressure (relief sensitivity) as low as 0.03kPa,0.004psi(theoretical value) finds best applications in tension control and air-balancer, etc.
No readjustment of regulated pressure required even after long “down-time”.

Applications

Tension control
Combination with BF cylinders (SC series)
Printing machines, paper craft machines, plastic film fabricating machines, textile machines, etc.
Press control
Combination with BF cylinders
Grinding machines, friction testing machines, soil tester, cutter, etc.
Volume booster
Valve regulators relating to instrumentation devices, etc.
Set pressure of various regulated pressures by remote-control.
Best applications for air-balancer, air-micrometer, leak tester, dispenser and others.
