RS・M/S series

Features

• High precision control
  High precision air regulating by sensibility 0.1%F.S., hysteresis ±0.1%F.S.
• Excellent characteristics
  Excellent especially in relief characteristics, pressure characteristics, flow characteristics Minimum relief pressure (relief sensibility) is 0.03kPa,0.004psi(theoretical value).
• Excellent start-up stability
  No readjustment of regulated pressure required even after long “down-time”.
• Long-term pressure stability
  RS.M/S keeps the setup pressure for a long term accurately after a setup. Almost no pressure drop after setup.
• High resolving power
  Five-phase stepping motor drive enables users slightly change the setup pressure by 1 step driving. Further, micro-step driving achieves high pressure resolution by 0.1kPa,0.01psi or less.
• Maintaining the pressure during electricity outage.
  It keeps setup regulated pressure even in case of sudden electricity outage.

Applications

• RS.M/S is suitable for applications requiring high-resolution pressure control of 0.1 kPa or less.

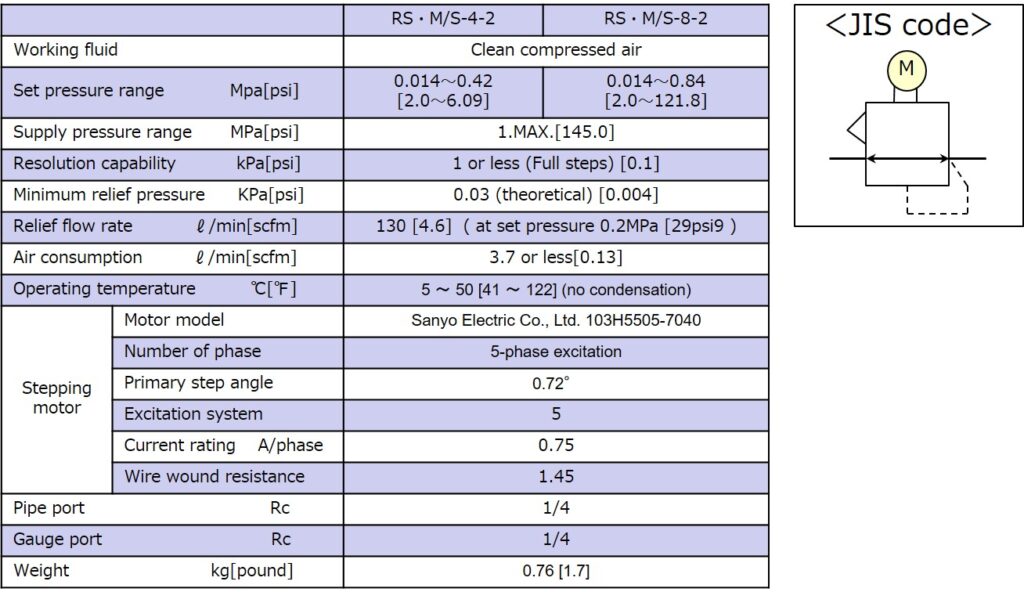

Specifications

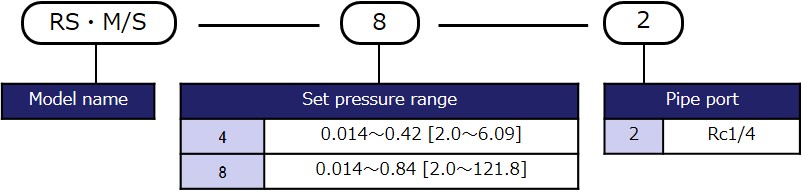

Model designation

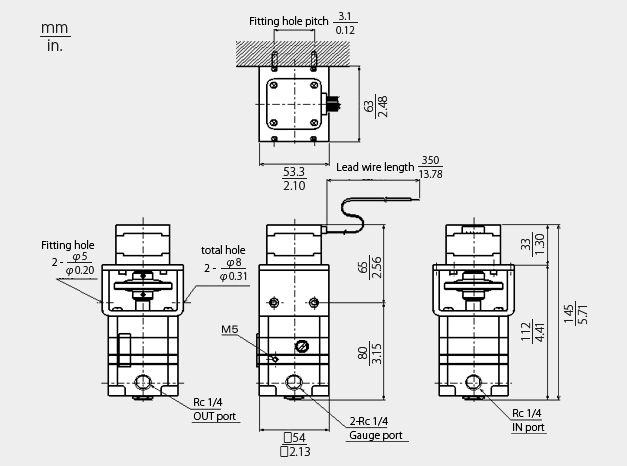

Size

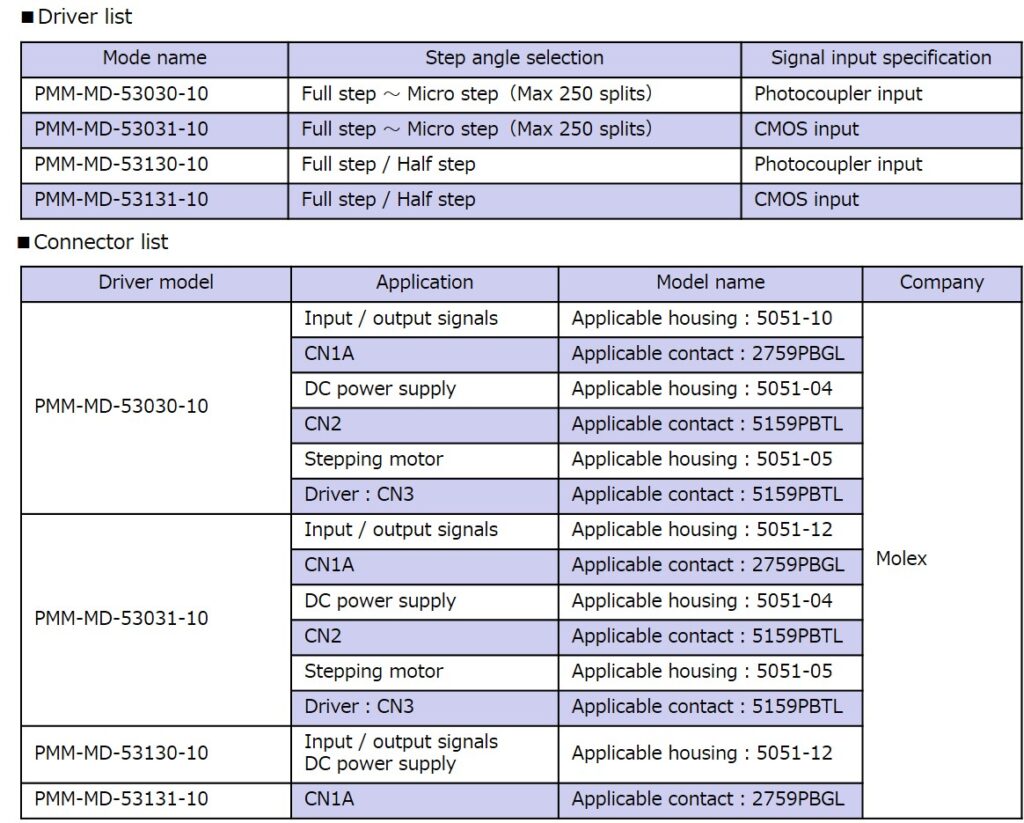

Option
