RP series
RP series
Direct acting type with high sensitivity. Appropriate for setup not only with high pressure but with minute pressure because of not having air bleed.
Features
- Available to control air pressure at high precision by repeatability of ±0.5%F.S.
- Output pressure is almost not affected （within 5kPa,0.7psi) by. supply pressure variation.
- Unrivaled high-accurate pressure setup is available. Also, this non-bleed type of regulator enables users to control pressure from zero point.
- Grease is not used in the gas contact area.
Applications
- Ideal for applications requiring low pressure pressure control.
- Non-relief type can be used for applications that can not open to atmosphere such as nitrogen and carbon dioxide gas.
Please contact us when using gas with small molecular weight or corrosive gas etc.
Application

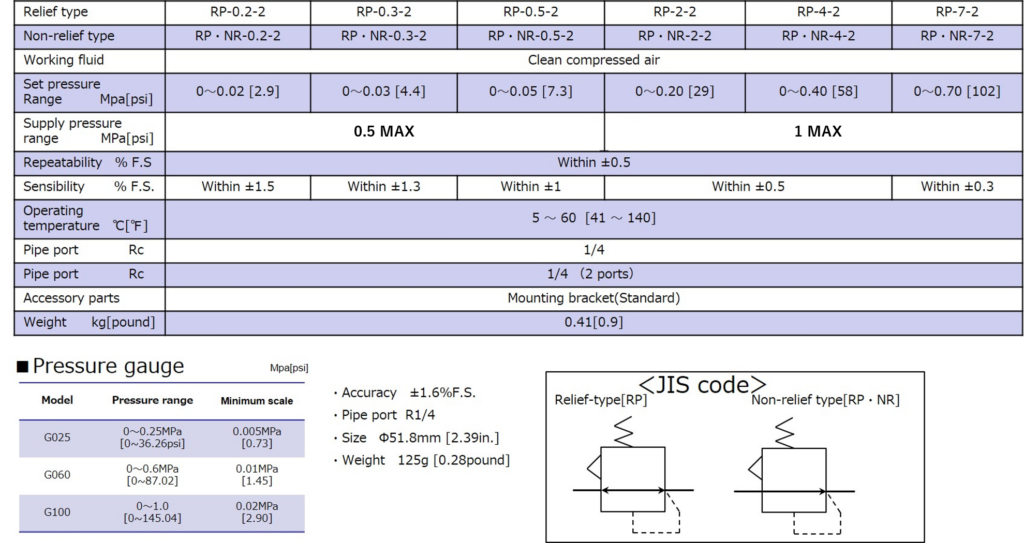

moreSpecifications

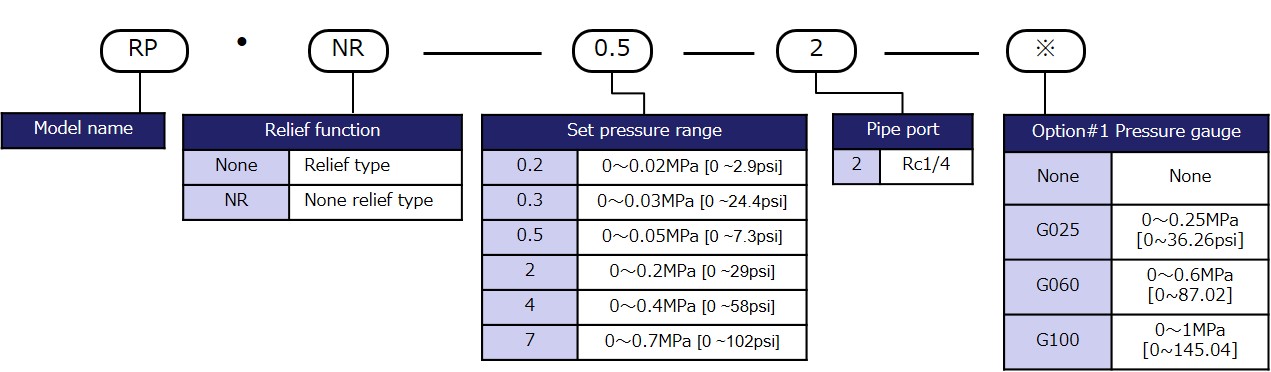

Model designation

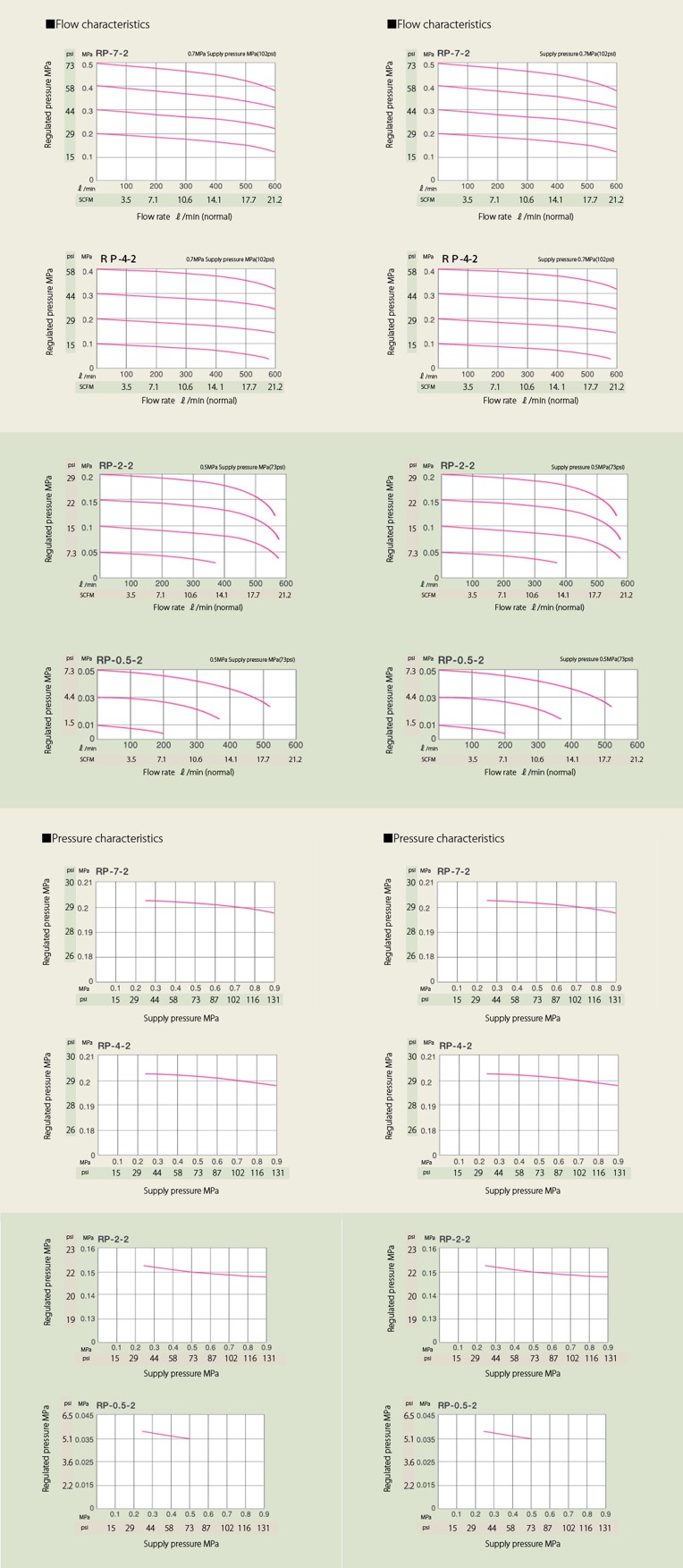

Characteristic
Dimensions
