RP2 series

Features

• Although the size is equivalent to a miniature air regulator, this well-balanced miniature precision air regulator has a sufficient pressure characteristics of precision air regulators.
• The push-lock type knob permits easy pressure setting.
• In addition to panel mounting, this regulator can be mounted on the wall as well through a bracket.

Applications

• Ideal for applications that are compact and require pressure characteristics.

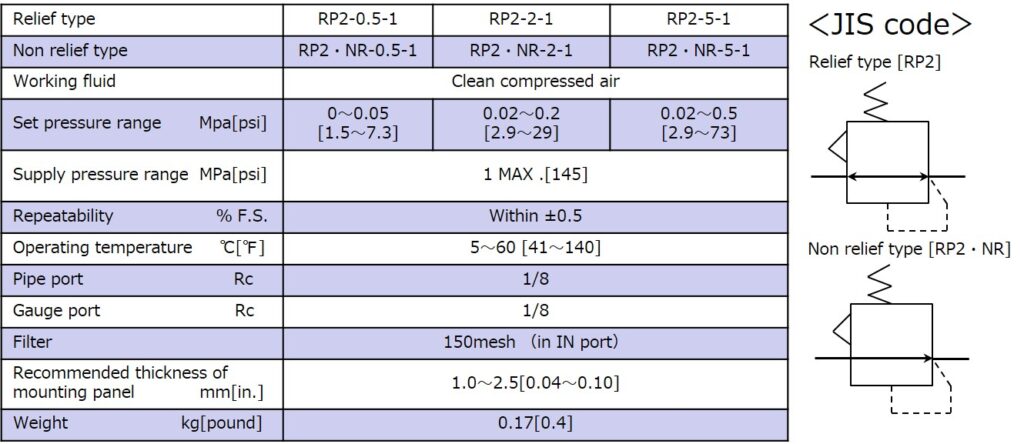

Specifications

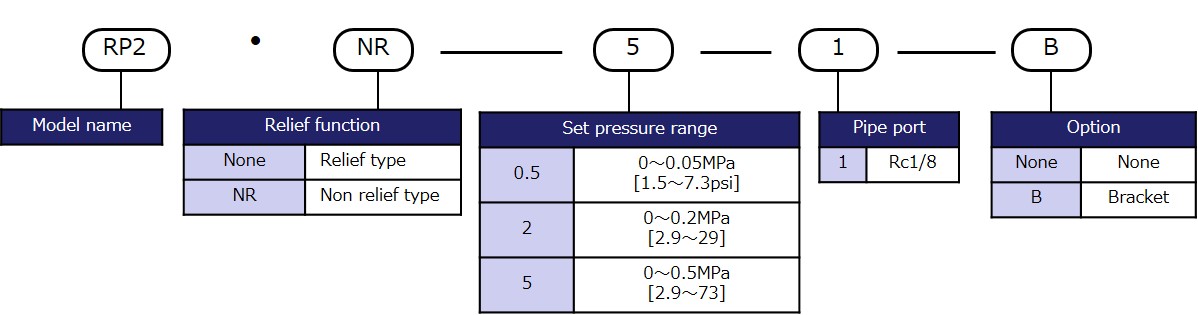

Model designation

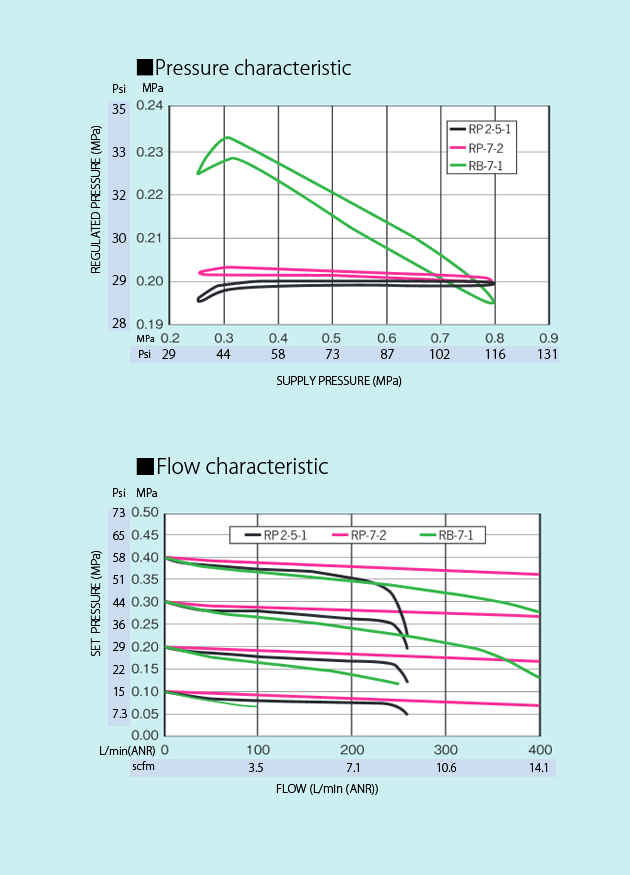

Characteristic

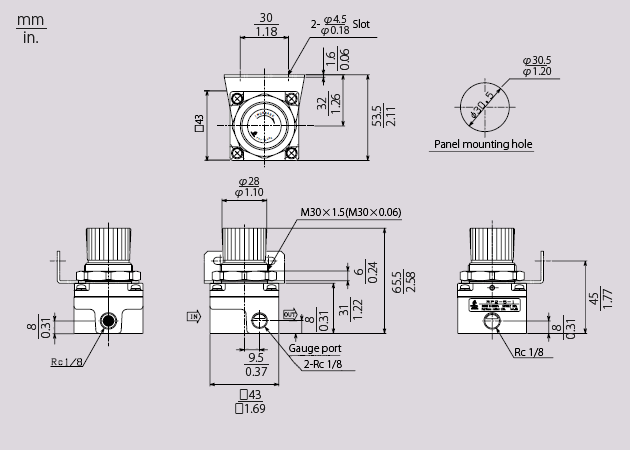

Dimensions
