RA series

Features

The small regulator ”RA series” also supports large flow rates and can be fixed with a manifold. Furthermore, this push-locking type makes it easy to set the pressure.

• Compact and light(130g[0.3pound])
• Figures are also available for mounting manifold.
• Available for no oil specification(RA series only).
• Repeatability ±0.3～1.0％F.S.
• Excellent in pressure and flow characteristics.
• Bush-lock type knob.
• Ｃorrespond to a clean room by custom order.

Applications

It is suitable for applications requiring small size and flow rate.

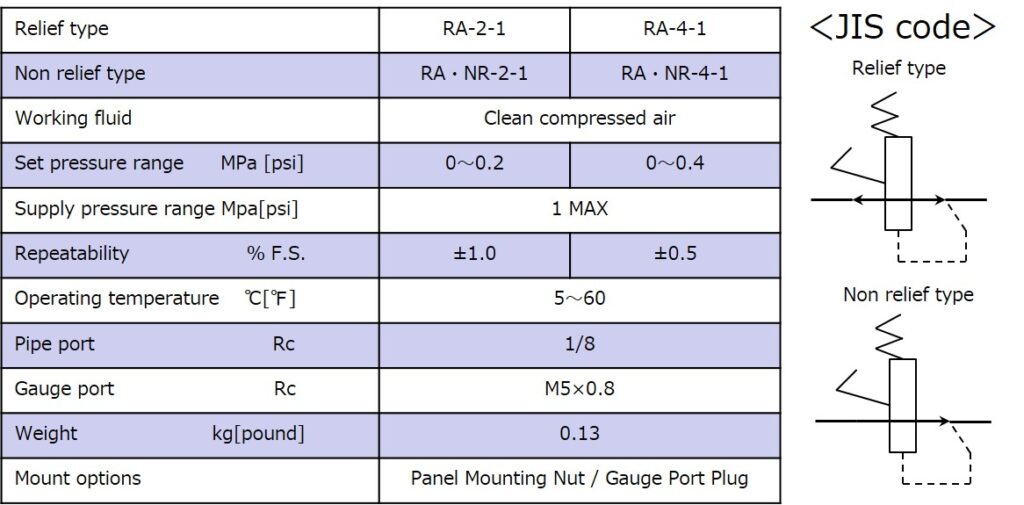

Specifications

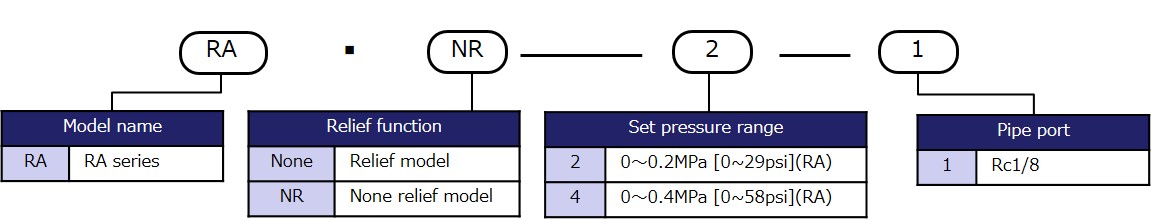

Model designation

Characteristic

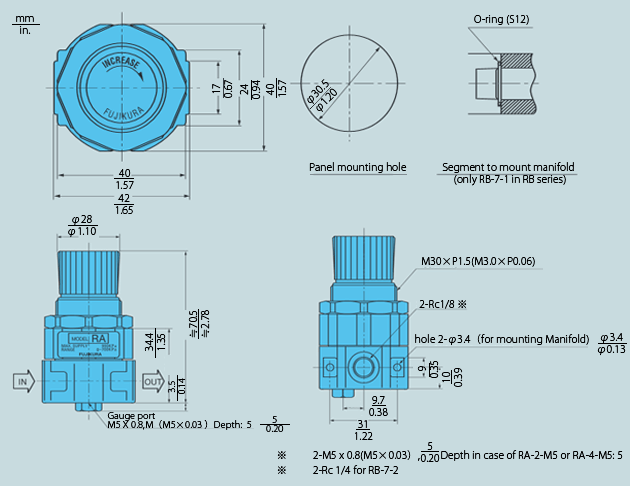

Dimensions
