RT series

Features

RT series” is the transducer which is directly set by an electric input signal.

• Available to control air pressure with high accuracy at ｌinearity 1.5%F.S., Hysteresis 1.0%F.S.
• Output pressure is almost not affected (within 0.5% F.S.) by. supply pressure variation.
• Large flow rate allows direct drive of pneumatic unit. In case of intermittent load, the repeatability is 0.5%F.S.or under.
• No restriction of installing position. But zero-adjustment and span adjustment is needed after installation.
• Span point can be changed in the range of 0.65～0.43MPa(94～122psi) of RT.E/P-8-2, and 0.24～0.84MPa(35～122psi) of RT.I/P-8-2 by span controlling screw.
• Compact size with main dimensions 54 x 105(2.13×4.13in.) permits use in restricted areas.

Applications

• Tension control with dancer roller.
• Pressure force control of spot welding guns.
• Tension control with air brakes.
• Press control of polishing machines.
• Dispenser control of various fluid.
• Pressure control of air balancers and lifters.
• Pneumatic control of control valves.
• Handling force control of robotic hands.
• Coasting around control in programmed paid spray system.

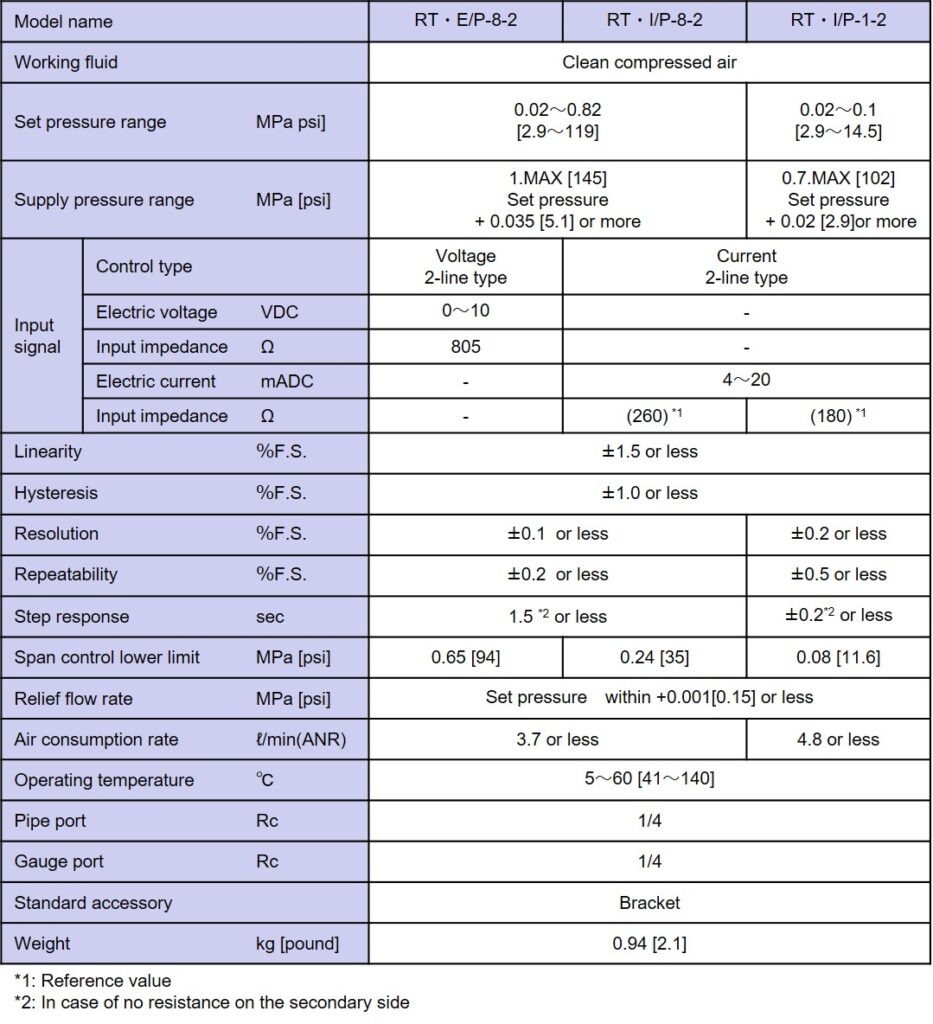

Specifications

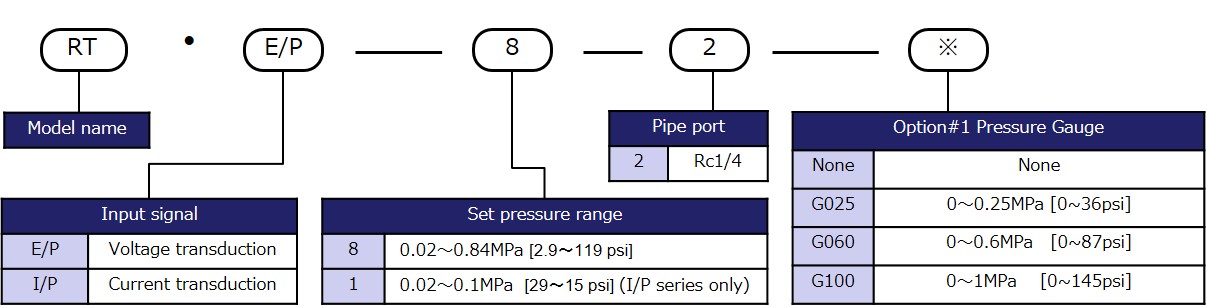

Model designation

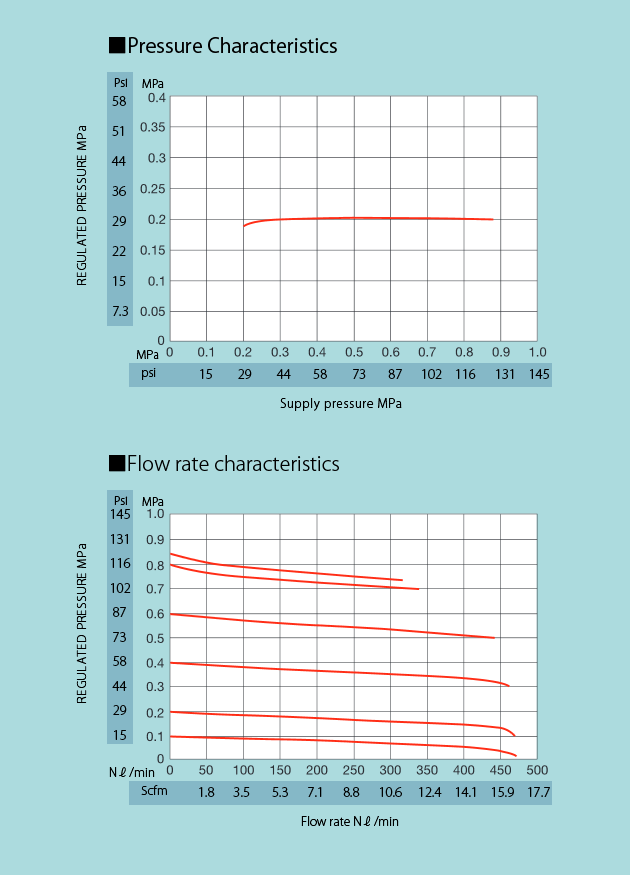

Characteristic

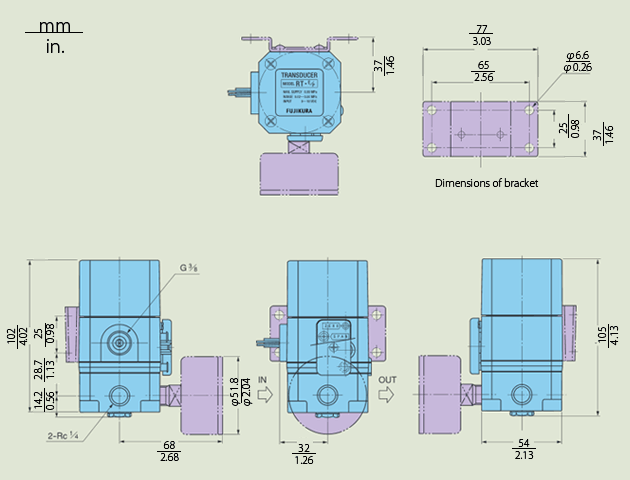

Dimensions
