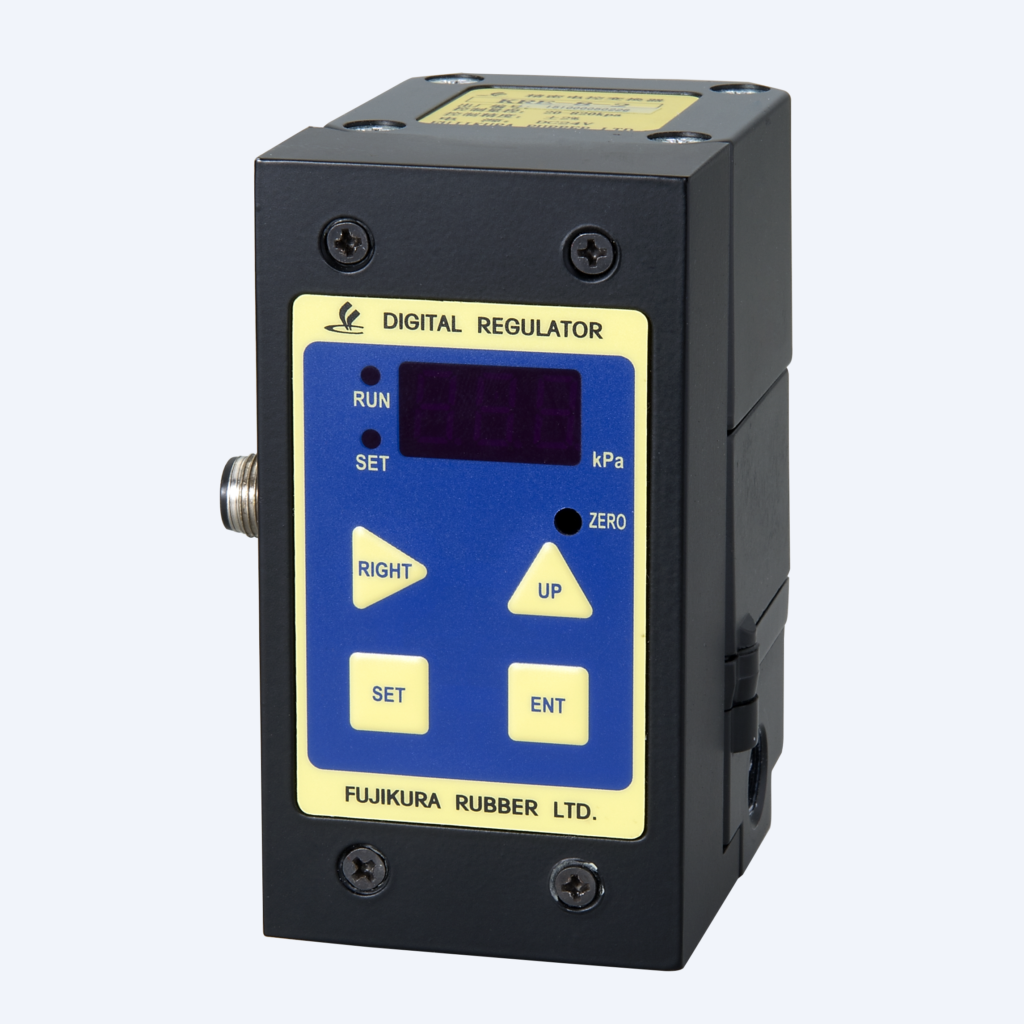

KRE series(Made in China)

Features

• Feedback control enables further high accuracy air pressure control.
• Excellent pressure characteristics, flow characteristics and stability can be realized by feedback control.
• It is not affected by electric noise, and simultaneous control up to 32 units is possible with one controller.

Applications

• Tension control with dancer roller.
• Pressure force control of spot welding guns.
• Tension control with air brakes.
• Press control of polishing machines.
• Dispenser control of various fluid.
• Pressure control of air balancers and lifters.
• Pneumatic control of control valves.
• Handling force control of robotic hands.
• Coasting around control in programmed paid spray system.

Specifications

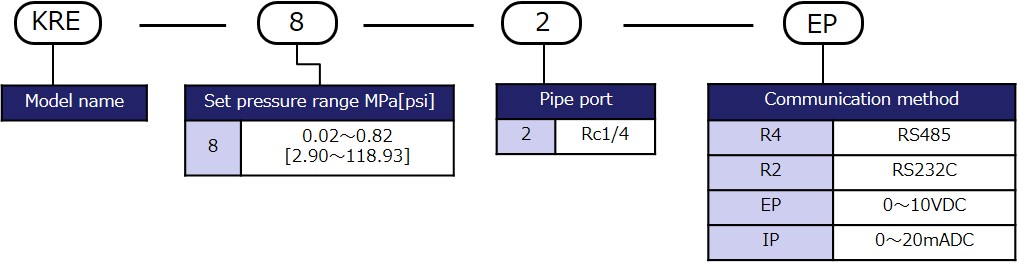

Model designation

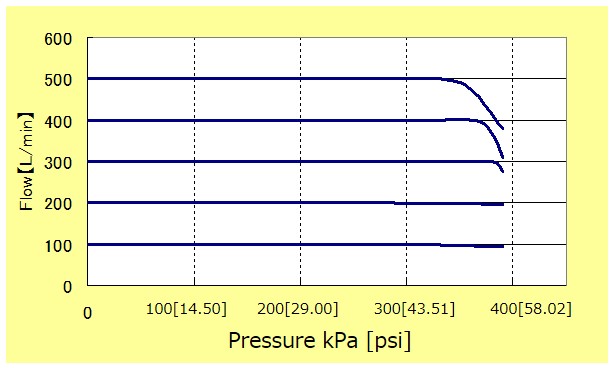

Characteristic

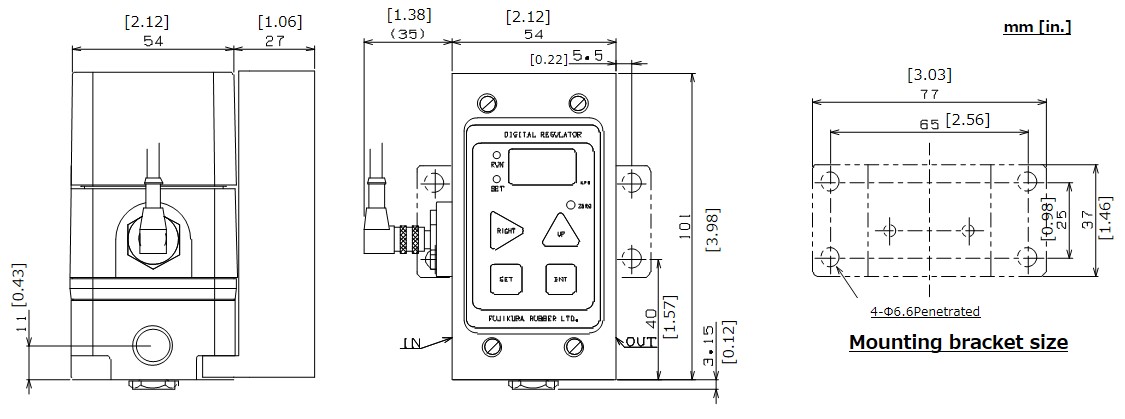

Dimensions
