RV series
RV series
’RV series'' has high accuracy of pressure as vacuum regulator. Direct acting type allows little air leakage, and an efficient controlling of pressure from primary side.
Port size:1/4 , 3/8
Features
- Available to control degree of vacuum with high accuracy at sensibility 0.13kPa(1mmHg)[0.019psi], repeatability 0.3kPa(±2.2mmHg)[0.044psi] or under.
- Output pressure is almost not affected (within 0.5% F.S) by. supply pressure variation.
- Applicable for use with large flow because of its maximum flow rate 270/min (normal)[9.5scfm].
- This regulator responds sensitively against regulated pressure variations.
Applications
- ”RV series” is ideal for applications requiring high precision, high flow rate vacuum control.

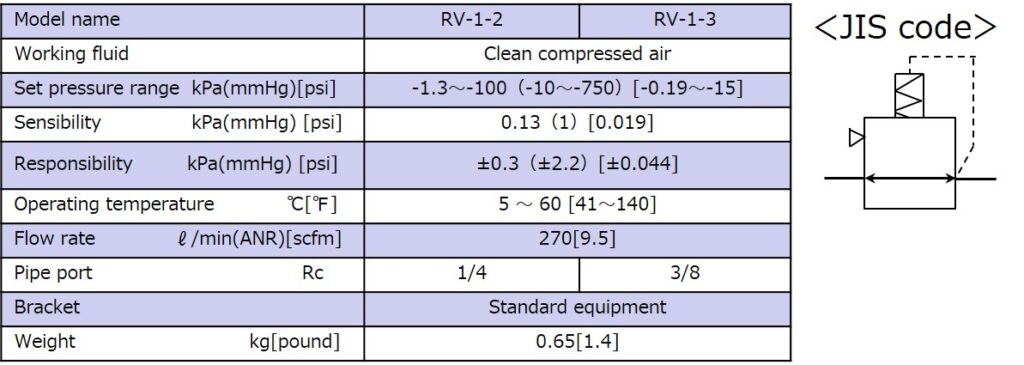

Specifications

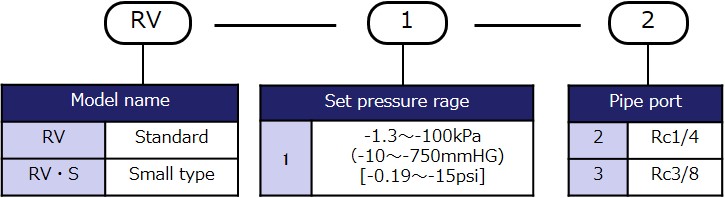

Model designation

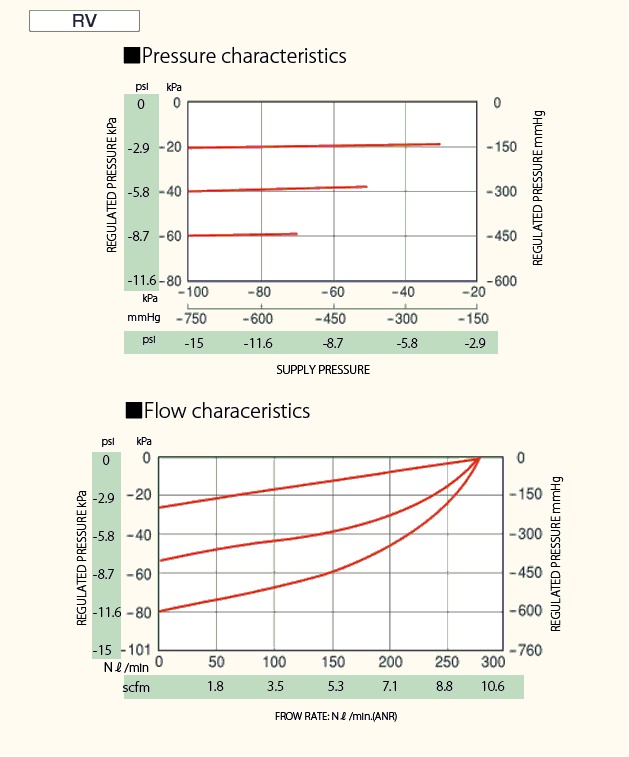

Characteristic

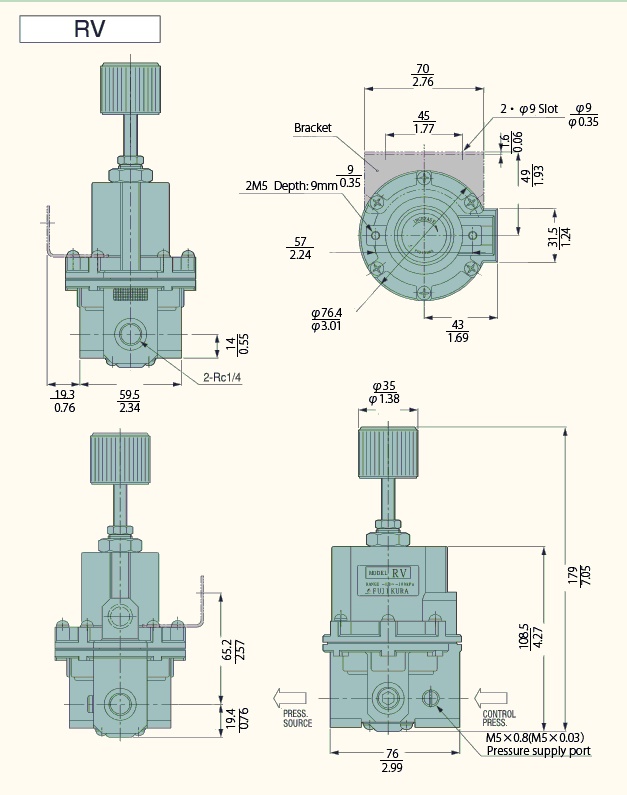

Dimensions
