RV2 series
RV2 series
'RV2 series'' is the most compact type in vacuum regulator.It has almost same characteristic as ''RV series'' in the area with low pressure and small flow rate.
Features
- ”RV2 series” is super compact, very low-profile and requires a little space to install. Best to install in the apparatuses in saved space and available to mount both panel and brackets.
- Excellent pressure characteristics of ”RV series” allow this regulator accurate negative pressure.
- The small air-leakage by direct acting restricts air-leakage and loss of energy from supply pressure, and ensure controlling pressure without bleeding.
- Available for special specification. Parts for clean room are stainless-steel, fluoric rubber, and other parts are electroless nickel plated.
Applications
- ”RV2 series” is ideal for applications requiring excellent pressure characteristics while saving space.

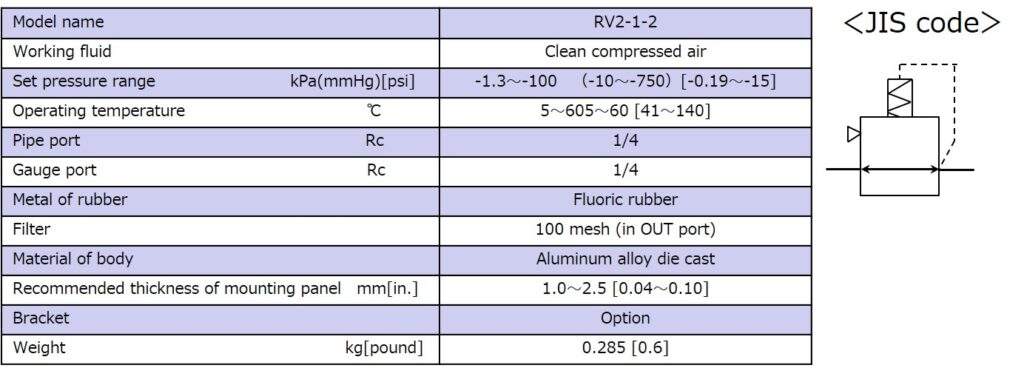

Specifications

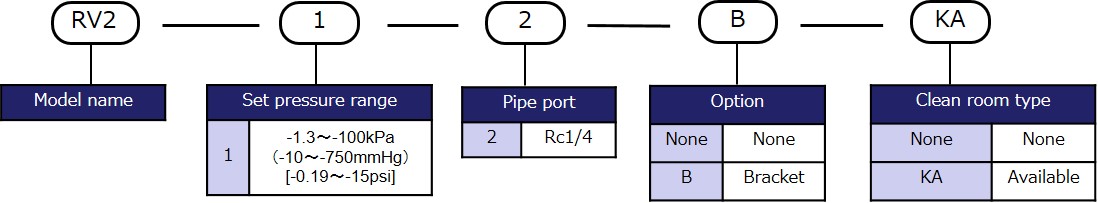

Model designation

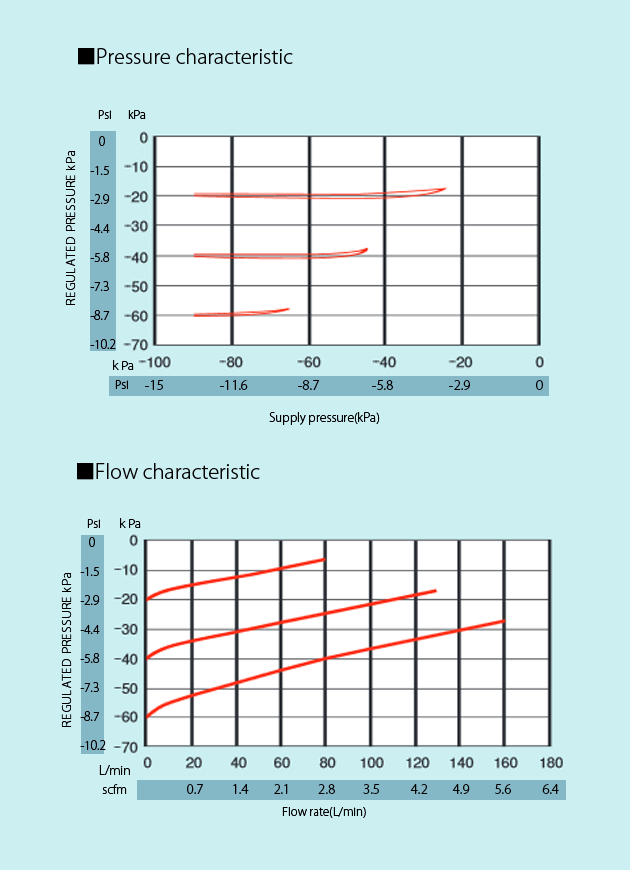

Characteristic
Dimensions
PRODUCT
Products in the same category
-
RV series
- Factory automation
’RV series'' has high accuracy of pressure as vacuum regulator. Direct acting type allows little air leakage, and an efficient controlling of pressure from primary side.
Port size:1/4 , 3/8 -
RV・S series
- Factory automation
’RV.S series'' has high accuracy of pressure as vacuum regulator. Direct acting type allows little air leakage, and an efficient controlling of pressure from primary side.
Pipe port size:1/4
