RR series for cleanroom

RR-KA series'' are air relay regulators for clean room, and servo-balanced system comprising rolling diaphragm and measuring capsule provides exceptionally precise pressure control.

Features

The parts are made of stainless materials and fluoric rubber, and the other parts are all electroless nickel plated so that very little dust is caused.
Manifold pipe fitting is available.
Exhaust relief air and bleed air out of clean room is available to exhaust by connecting exhaust pipe to relief port and bleed port.

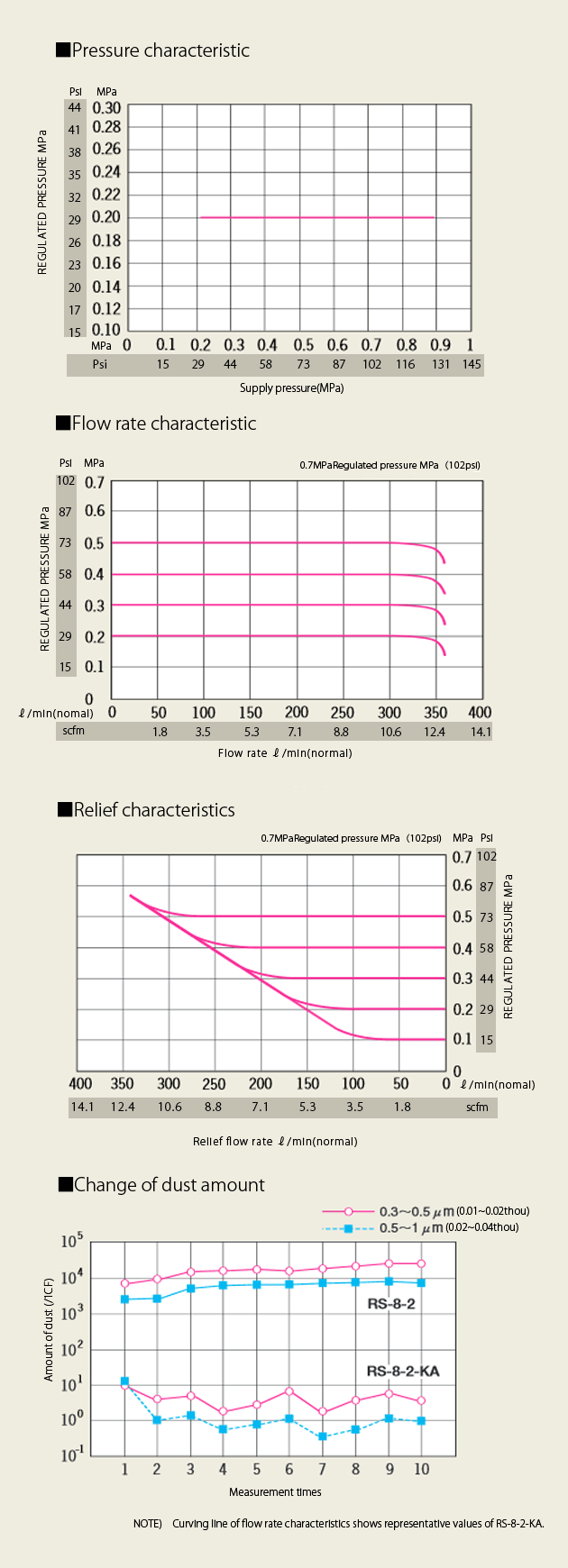

Highly accurate pressure control with sensitivity 0.1%F.S. repeatability ±0.1%F.S.
