FCAM series
FCAM series
Cracking pressure adjustment model.
Corresponds to compressed air and liquid.
Features
- Adjustment of cracking pressure is possible.
- High pressure model (maximum working pressure: 20 Mpa[2900.75psi]).
- Ideal for small-volume applications such as prototype, research, etc.
- Compact, lightweight design.
Applications
- Machine Tools：Milling machine, NC lathe, laser processing machine etc.
- Industrial furnace：General industrial furnace, heating furnace, vacuum furnace, etc.
- Medical：Endoscope washing device, oxygen concentrator, anesthesia machine etc.
- Analysis equipment:Measurement equipment, component gas analysis, gas analyzer etc.
- Battery：Household fuel cell, secondary battery, gas engine etc.
- Water (liquid) treatment: Pure water production, pure water recycling.
- Gas generator related: Compressor, compact pressure vessel, various gas generator etc.
- Others: Oxygen capsule, gasoline measuring instrument, forklift etc.

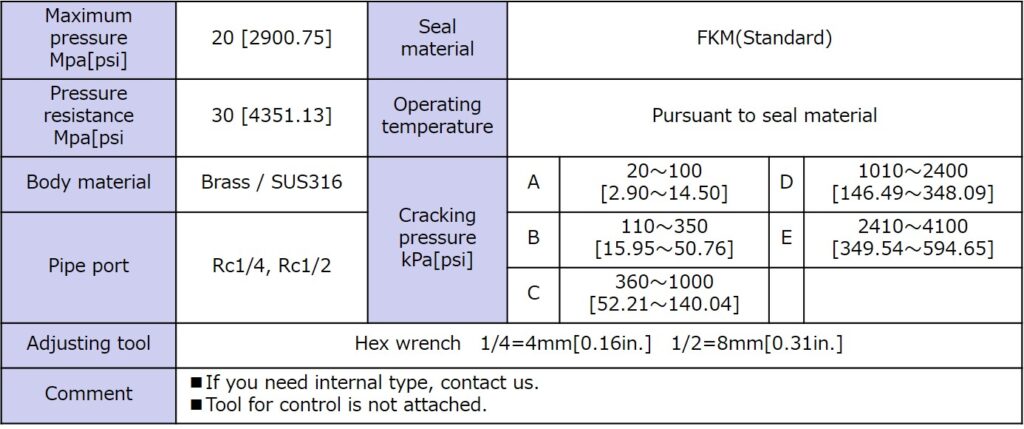

Specifications

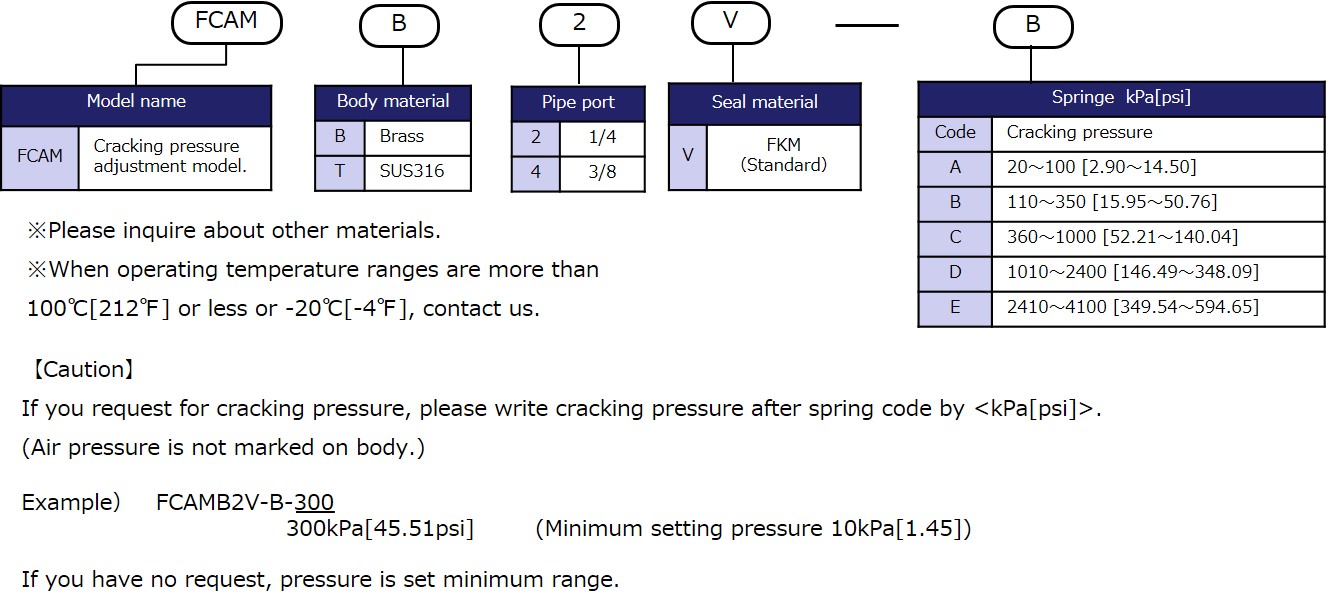

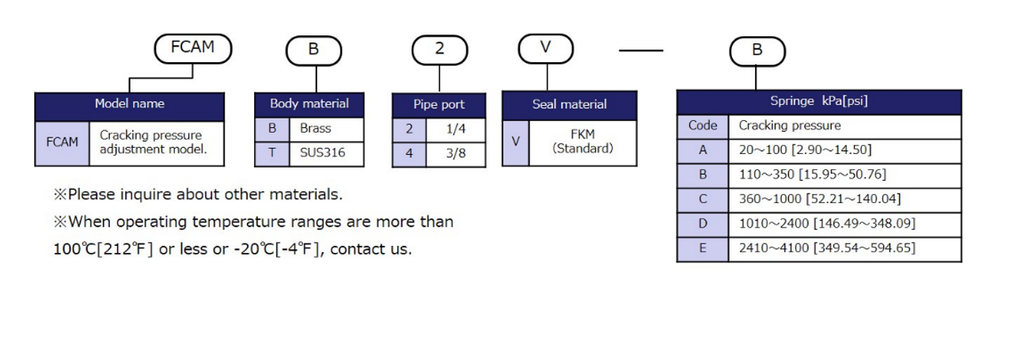

Model designation

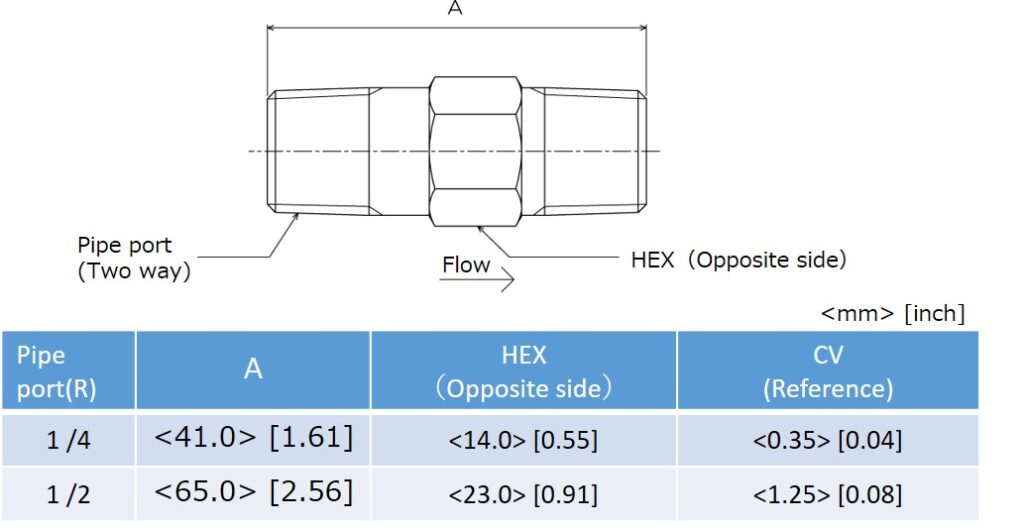

Dimensions

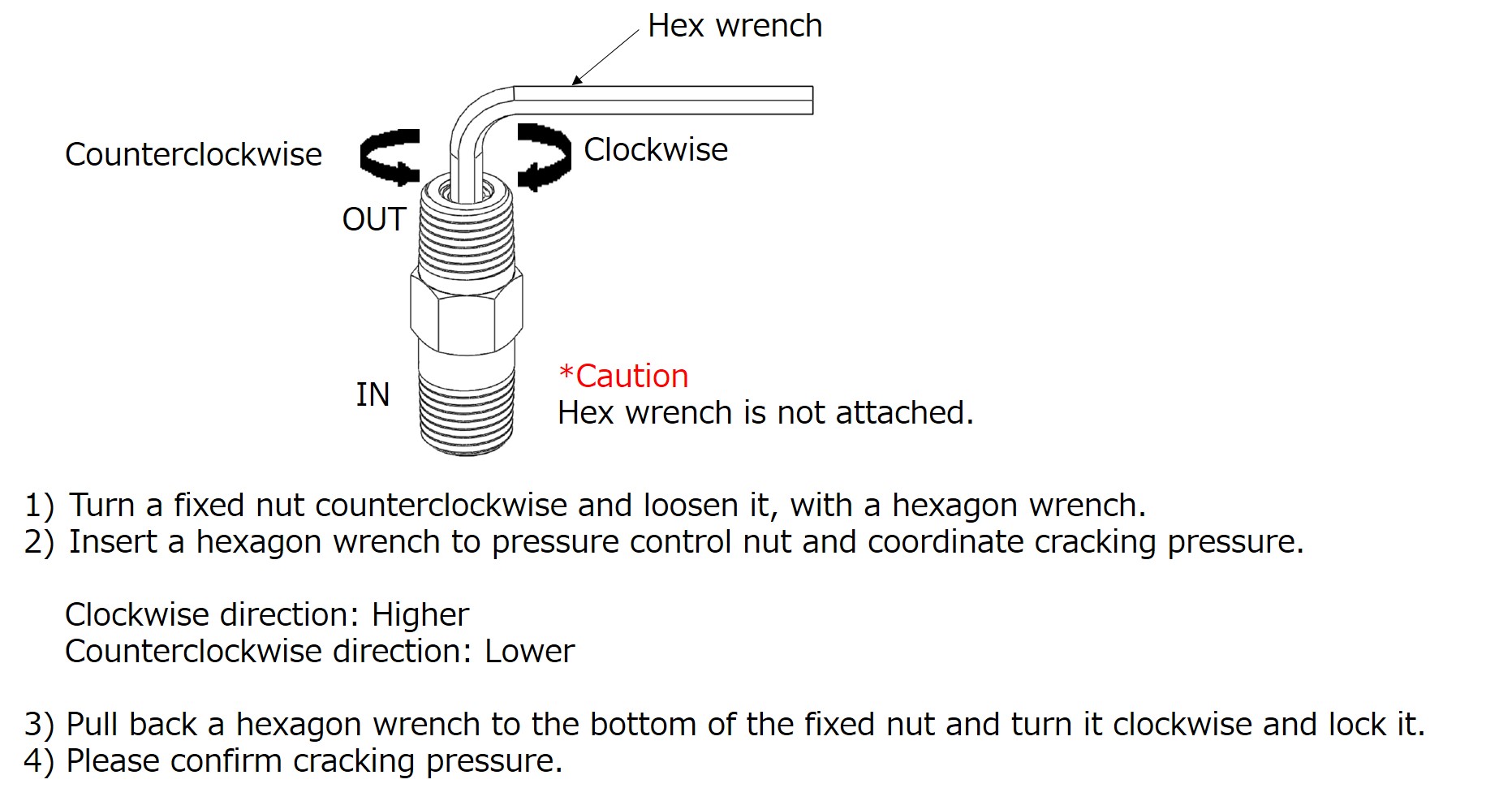

Adjustment method
