FC8 series
FC8 series
We adopted resin POM for the body.
Corresponds to compressed air and liquid.
Features
- ”FC8 series ” is lightweight because resin.
- In addition to tap water, various liquids can be used.
- Piping installation posture is free.
- Piping installation posture is free.
Applications
- Machine Tools：Milling machine, NC lathe, laser processing machine etc.
- Industrial furnace：General industrial furnace, heating furnace, vacuum furnace, etc.
- Medical：Endoscope washing device, oxygen concentrator, anesthesia machine etc.
- Analysis equipment:Measurement equipment, component gas analysis, gas analyzer etc.
- Battery：Household fuel cell, secondary battery, gas engine etc.
- Water (liquid) treatment: Pure water production, pure water recycling.
- Gas generator related: Compressor, compact pressure vessel, various gas generator etc.
- Others: Oxygen capsule, gasoline measuring instrument, forklift etc.

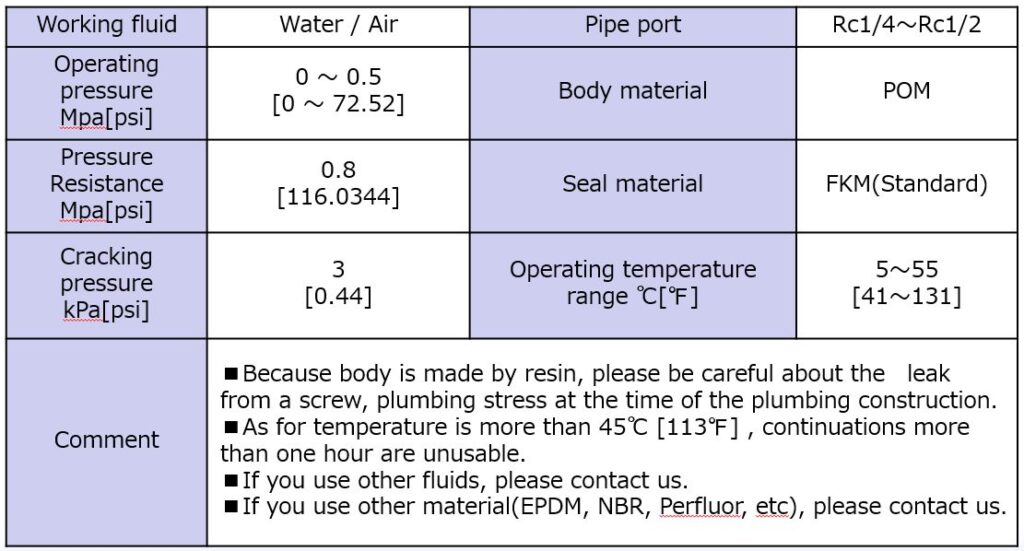

Specifications

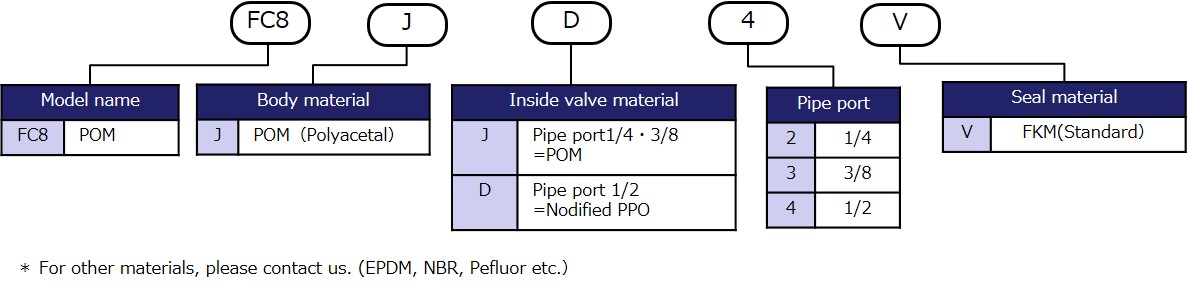

Model designation

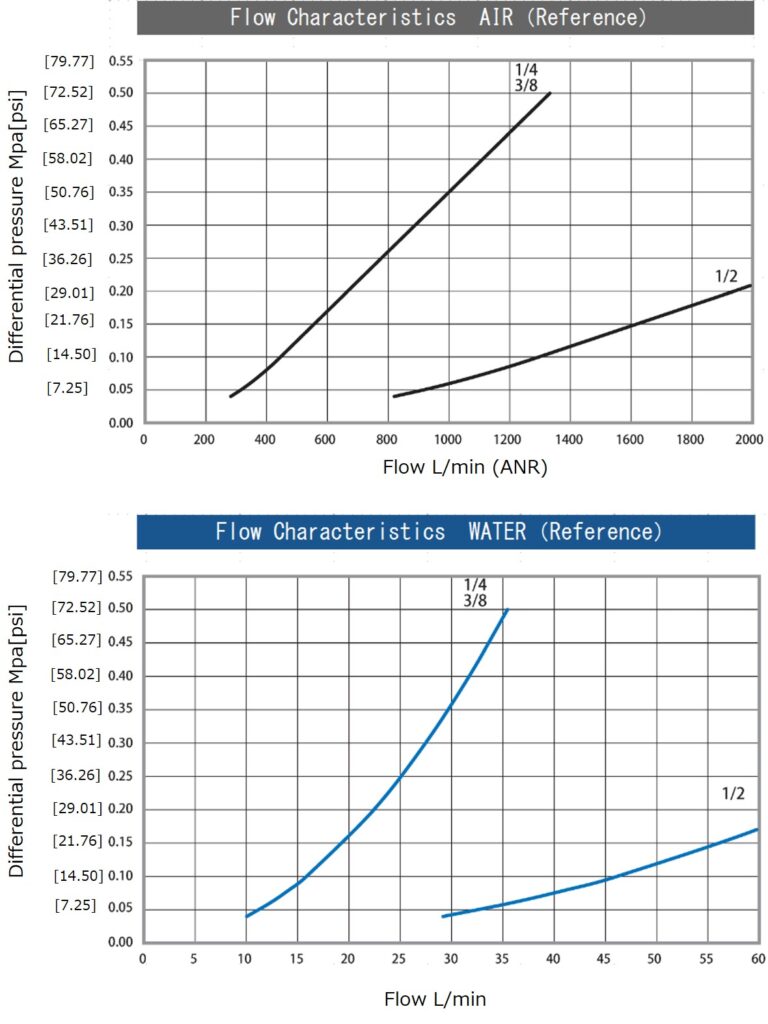

Characteristic

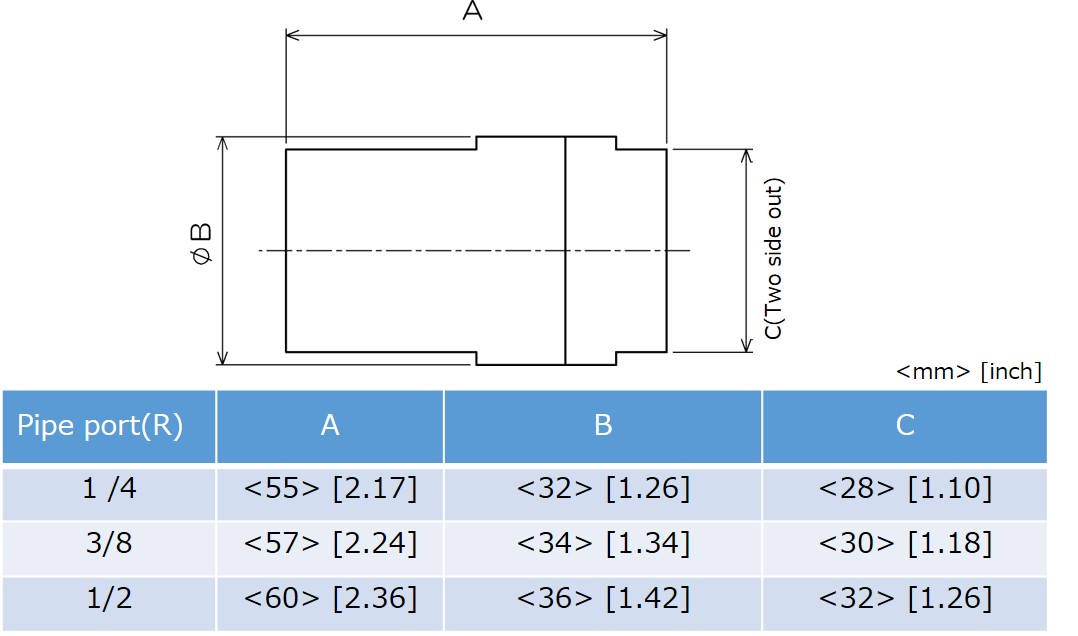

Dimensions
