FC series

Standard BF cylinders using dry-bearing are designed in a variety of sizes from 10 to 200mm(0.39～7.87in).

BFシリンダ　FCシリーズ/SCシリー/ズ/SCSAシリーズ/Cシリーズ (-SB)

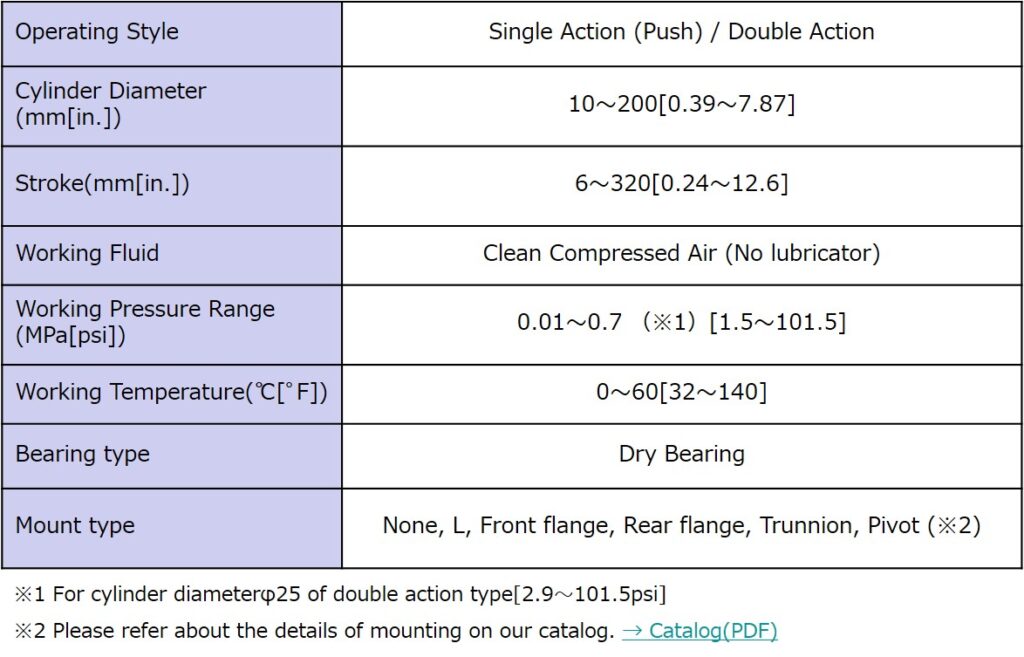

Features

FC Series are standard type of BF Cylinders. They are designated in a variety of sizes from 10 to 200φ(0.39～7.87in.).
Each size has both a single action type and a double action type.
A variety of mounts, that is, L, Flange, Trunnion, Pivot are available.
(Available for cylinders of on/over 25mm(0.98in.) diameter)

Applications

BF Cylinders find its best applications in such cases where air leakage is not allowed and/or sensitive response to minute pressure variations are required.

High sensitivity actuator for automatic controlling equipments, pressure rollers and dancer rollers.
Air fine equipment in the clean factories without oil mist contamination.
Polishing equipment for lenses or jewels.
Precision actuator, etc. in case of requiring a certain output pressure (e.g. spot welding machines, etc.)
Actuators for emergency uses.

Application

Features of BF diaphragm

Perfect Leak-proof.
Virtually no hysteresis-loss in smooth movement by rolling action.
Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
Smooth movement at low speed.
No lubricator required.
Steady working pressure range at any strokes and steady output pressure.
Available to change materials and to adapt to specific circumstances or forms.
