SC series
SC series
Linear ball bearings is adopted for bearings.
Features
- SC Series have linear ball bearings in it, and the same size and structures with FC Series so that it takes the best advantages of the features of BF diaphragms.
- Good responsivity to pressure variations.
- Actuation by a very low pressure
- The friction when a lateral load is applied becomes smaller than FC series.
Applications
BF Cylinders find its best applications as the actuators as follows..
- Actuating exact control at low pressure.
- Controlling contact pressure of apparatuses for fiber and metal works.
- Tension control of printing machines and plastic productive facilities.
- Press control of polishing equipments and testing machines
Application

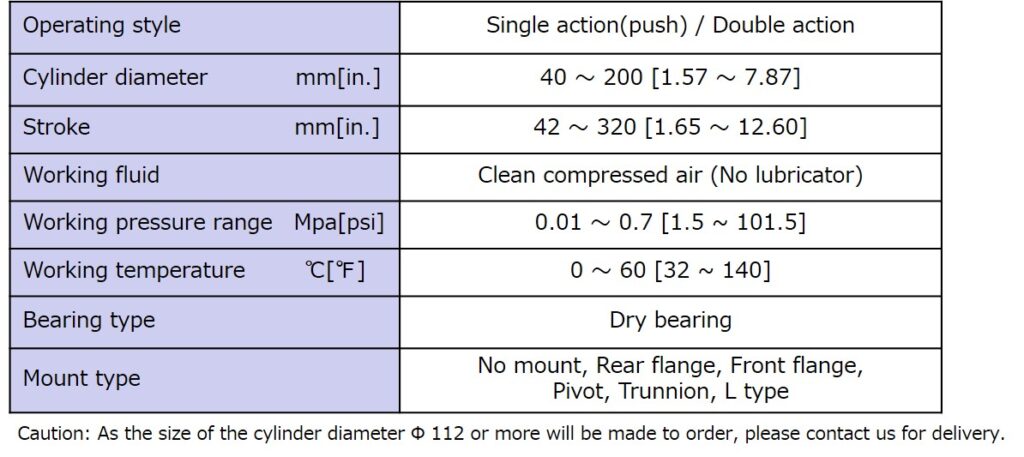

moreSpecifications
Features of BF diaphragm
- Perfect Leak-proof.
- Virtually no hysteresis-loss in smooth movement by rolling action.
- Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
- Smooth movement at low speed.
- No lubricator required.
- Steady working pressure range at any strokes and steady output pressure.
- Available to change materials and to adapt to specific circumstances or forms.

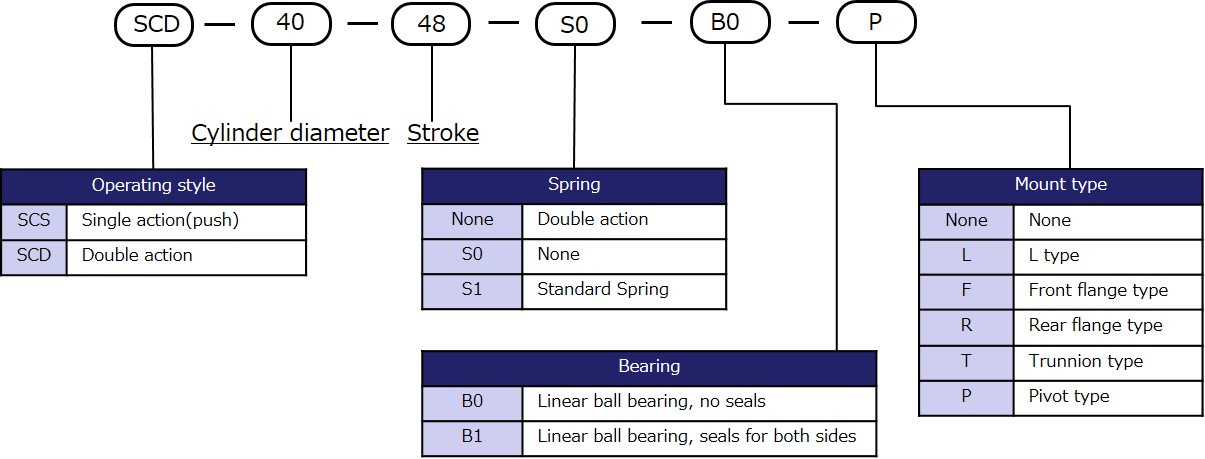

Model designation

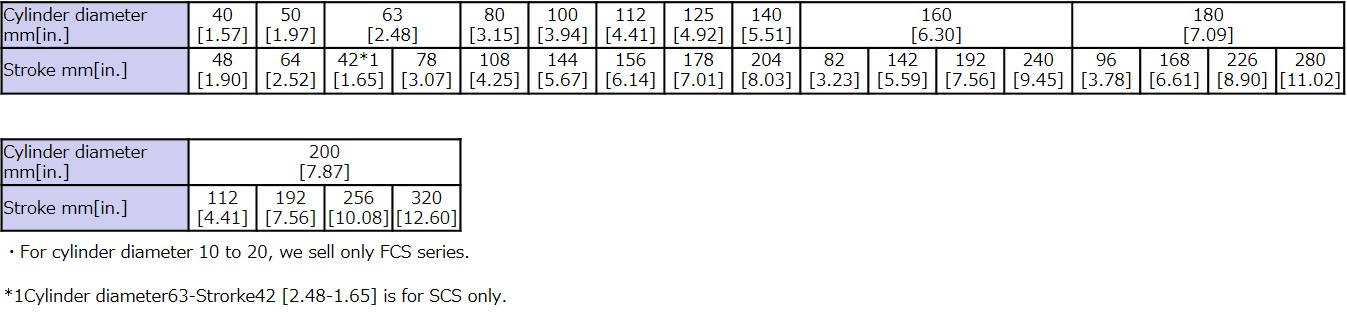

Size
