SCSA series

Features

• We achieved the lowest friction and the highest sensitivity in this series with thinner BF diaphragms.(Anti puressure：up to 0.4MPa[58.02psi] or less）.
• It became available to decrease the value of frictional resistance comparing with our standard BF cylinder which is known for its low friction.
  【Reference】Value of frictional resistance (comparing with our standard model)
  SCSA-63-78-S1-B0 ・・・ 2.6N(0.58 lbf)
  SCS-63-78-S1-B0 ・・・ 5N(1.12 lbf)
• Excellent sealing performance, air leakage is quite small .
• High stability with almost no variations of effective pressure range
• Please contact us about the other sizes.

Applications

• Tension control of gravure printing machines.
• Press control of polishing machines.
• Tension control of film-production facilities for liquid crystals.
• Testing machines, inspection equipment.
• Tension control of industrial film-production facilities

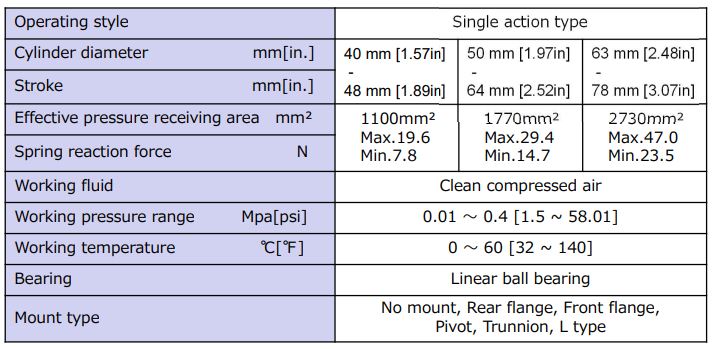

Specifications

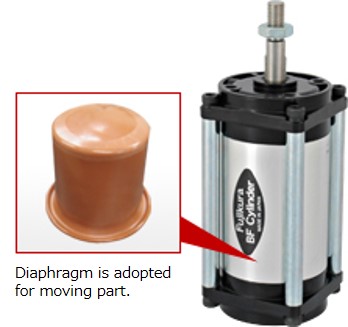

Features of BF diaphragm

• Perfect Leak-proof.
• Virtually no hysteresis-loss in smooth movement by rolling action.
• Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
• Smooth movement at low speed.
• No lubricator required.
• Steady working pressure range at any strokes and steady output pressure.
• Available to change materials and to adapt to specific circumstances or forms.

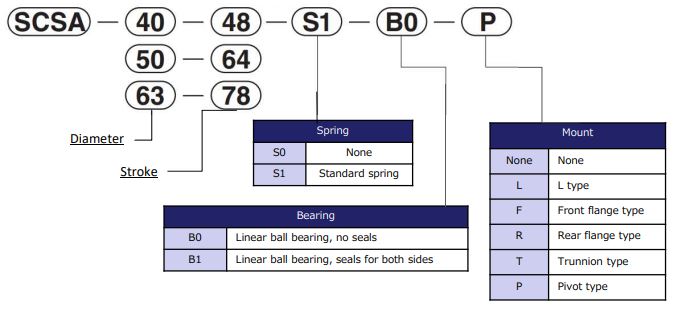

Model designation
