LC series
LC series
Minimal low friction double action type cylinder.
Features
- It is compact in shape and can be used in side by space saving.
- Because there is no rod seal, the resistance is the smallest among the double action type.
- Smooth operation is possible even after a long stop.
- Since there is no air leakage, almost no dust is generated.
Applications
- Precision press control (high decomposition load)：Lamination of ultrathin plates
- Tension control for film, paper, fiber
- High precision load control for lens polishing machine, crimping machine.
Application

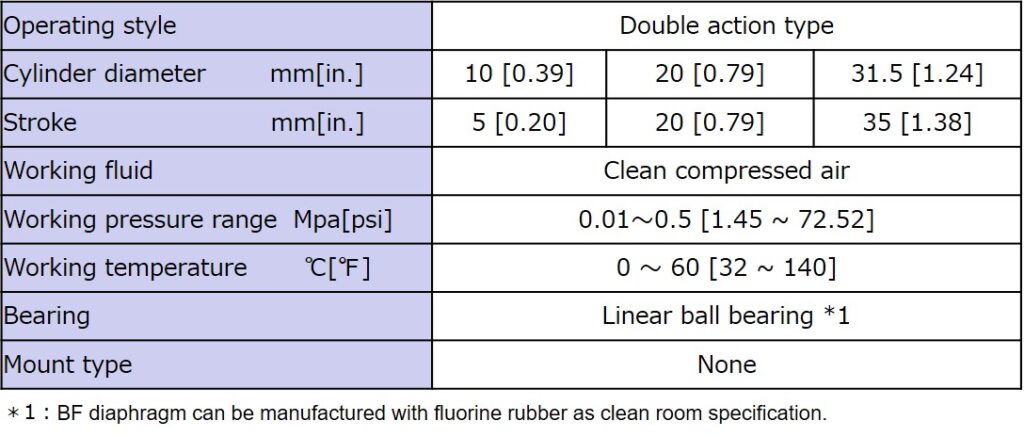

moreSpecifications
BFeatures of BF diaphragm
- Perfect Leak-proof.
- Virtually no hysteresis-loss in smooth movement by rolling action.
- Low start up pressure and responsive to minute pressure variations by thin diaphragms made by basic cloth and rubber. .
- Smooth movement at low speed.
- No lubricator required.
- Steady working pressure range at any strokes and steady output pressure.
- Available to change materials and to adapt to specific circumstances or forms.

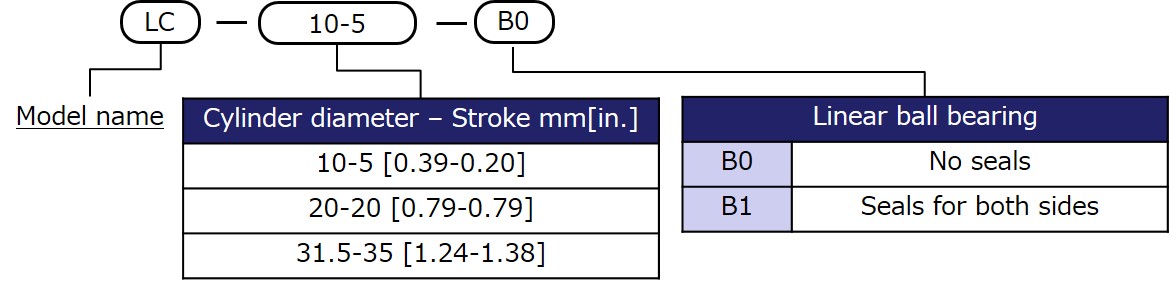

Model designation
PRODUCT
