FRHL series
FRHL series
High pressure in-line model
Corresponds to compressed air and liquid.
Features
- High pressure range.(Max setting pressure:4.2Mpa [609.16psi])
- Connecting outlet port is the best to recover exhaust gas/liquid.
- Cracking pressure’s setting is done before delivering.
Applications
- Machine Tools：Milling machine, NC lathe, laser processing machine etc.
- Industrial furnace：General industrial furnace, heating furnace, vacuum furnace, etc.
- Medical：Endoscope washing device, oxygen concentrator, anesthesia machine etc.
- Analysis equipment:Measurement equipment, component gas analysis, gas analyzer etc.
- Battery：Household fuel cell, secondary battery, gas engine etc.
- Water (liquid) treatment: Pure water production, pure water recycling.
- Gas generator related: Compressor, compact pressure vessel, various gas generator etc.
- Others: Oxygen capsule, gasoline measuring instrument, forklift etc.
Application

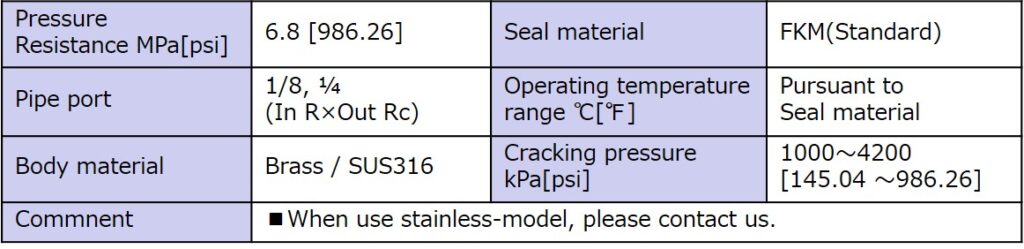

moreSpecifications

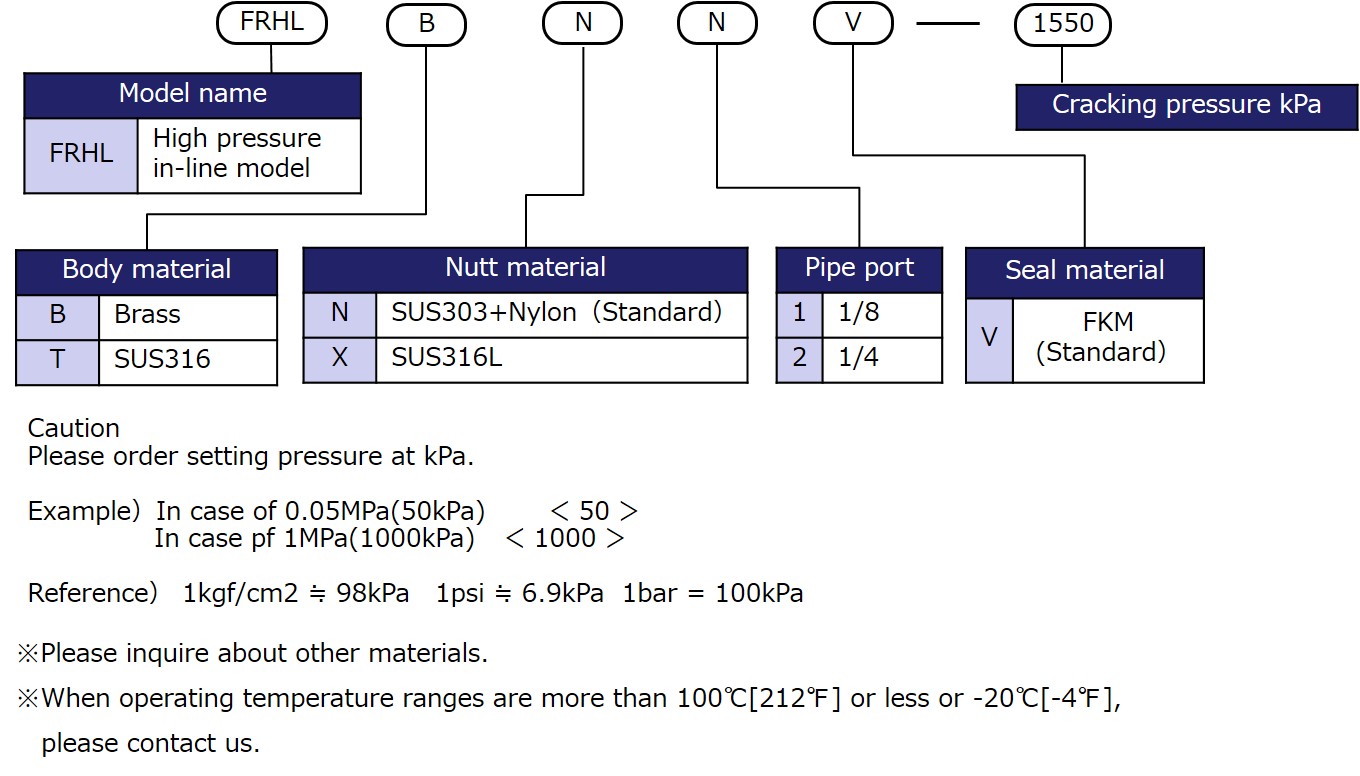

Model designation
Characteristic

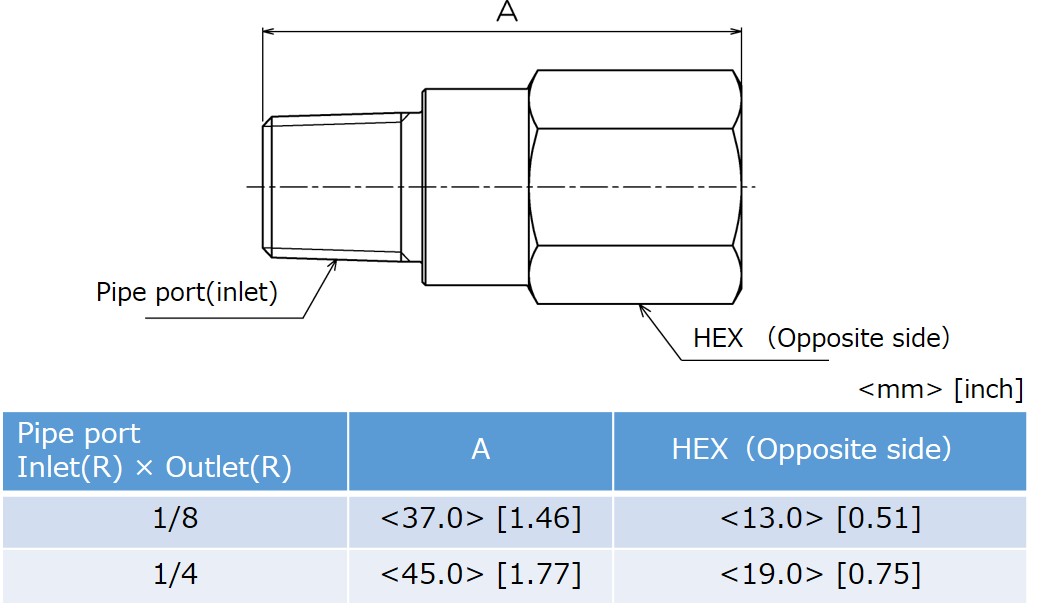

Dimensions
PRODUCT
Products in the same category
-
FRA series
- Factory automation
Low pressure atmospheric open model.
-
FRL series
- Factory automation
Low pressure inline model.
-
FRC series
- Factory automation
Deflector cap (low pressure air relief) model.
-
FRHA series
- Factory automation
High Pressure Atmospheric Open model.
-
FRM1 series
- Factory automation
External cracking pressure adjustment model.
-
FRM2 series
- Factory automation
External cracking pressure adjustment model.
It can also be used for solvents. -
VR1 series
- Factory automation
Low Pressure atmospheric Open model.
