VR1 series
VR1 series
Low Pressure atmospheric Open model.
Features
- Compact design allowing installation in a space-saving manner.
- The relief pressure is high precision because the difference in opening and closing pressure is small.
- Relief pressure other than the standard specification can be set as custom order.
（Setting pressure range:30～300kPa[4.35～43.5psi]）
Applications
- When delicate relief is required at low pressure / low flow rate.
- When repeatability of relief is required.
※Relief pressure may rise after leaving for a long time.
Application

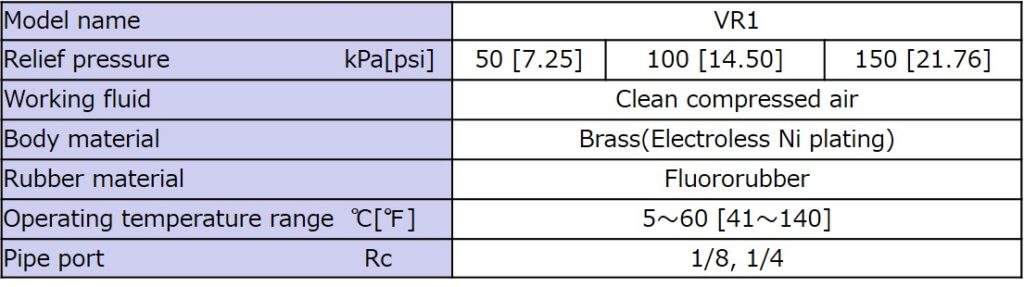

moreSpecifications

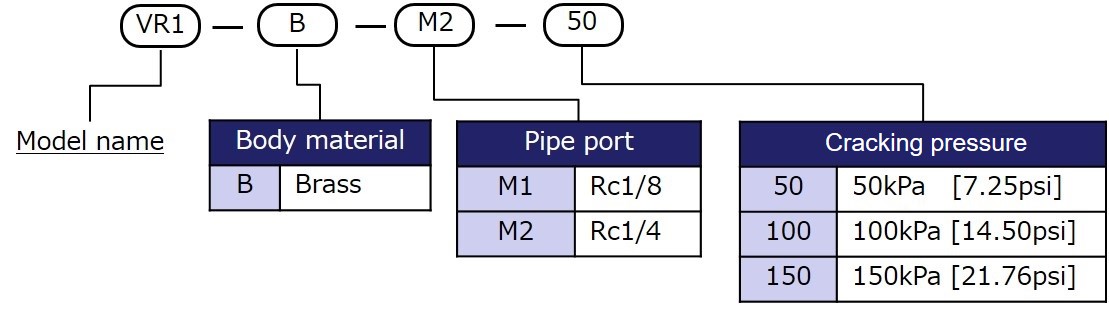

Model designation

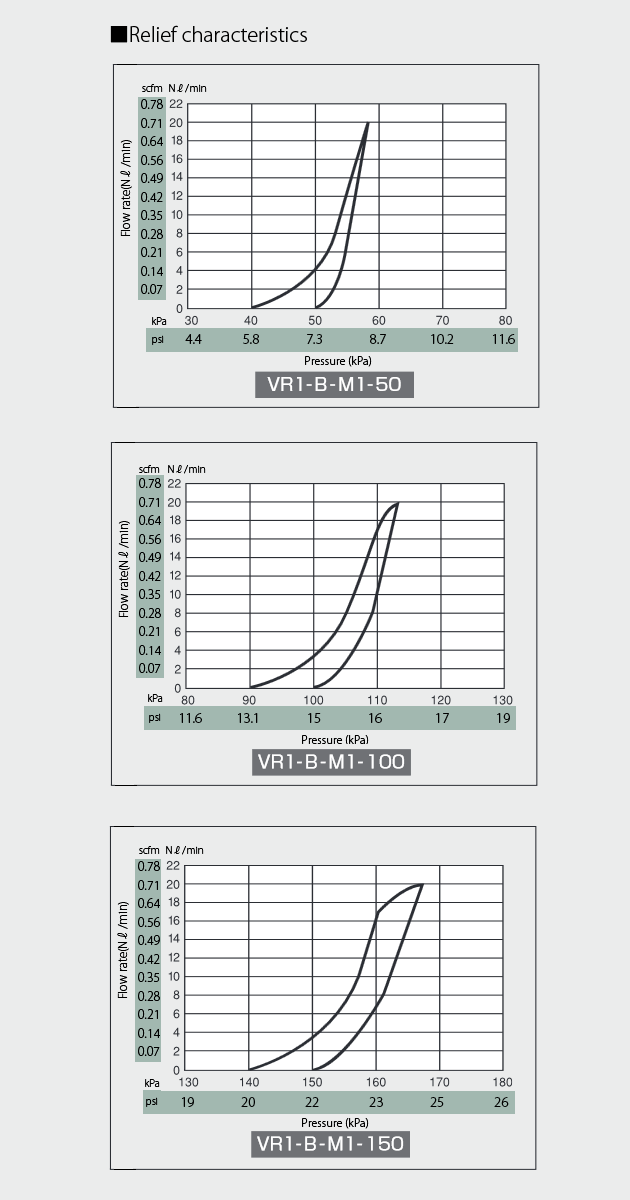

Characteristic

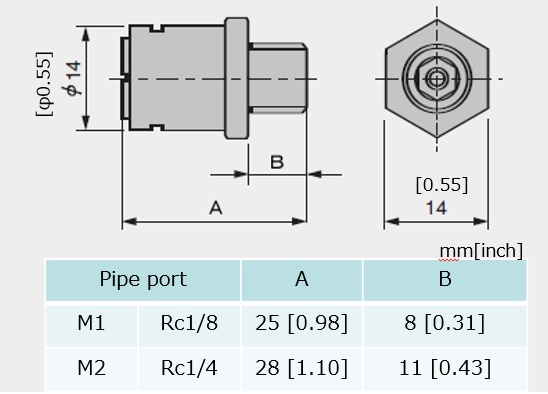

Dimensions
