FMNV2 series

Features

• Easy and reliable flow rate control is possible by having multi-dial display of rotation count.Peformanse is same as FFNV1 series.
• Multi dial is lockable by one touch.
• It corresponds to panel mount installation and easy to mount.

Applications

• Machine Tools：Milling machine, NC lathe, laser processing machine etc.
• Industrial furnace：General industrial furnace, heating furnace, vacuum furnace, etc.
• Medical：Endoscope washing device, oxygen concentrator, anesthesia machine etc.
• Analysis equipment:Measurement equipment, component gas analysis, gas analyzer etc.
• Battery：Household fuel cell, secondary battery, gas engine etc.
• Water (liquid) treatment: Pure water production, pure water recycling.
• Gas generator related: Compressor, compact pressure vessel, various gas generator etc.
• Others: Oxygen capsule, gasoline measuring instrument, forklift etc.

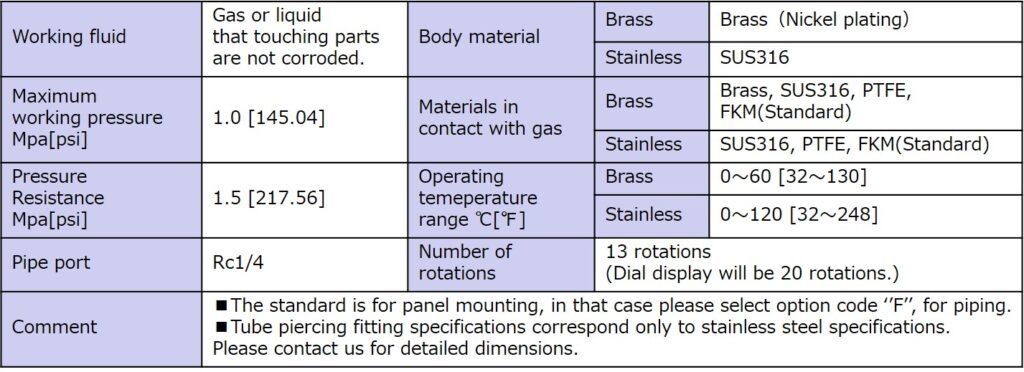

Specifications

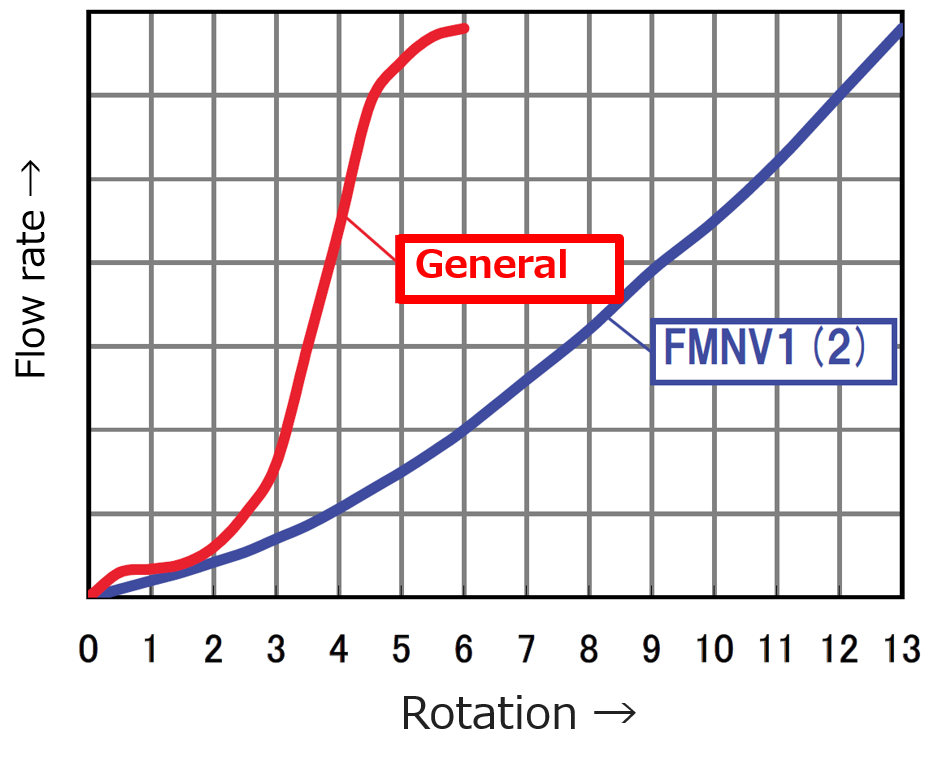

Comparison of flow characteristics

■FFNV1 series have a large number of rotations and can be finely adjusted with linear flow characteristics.

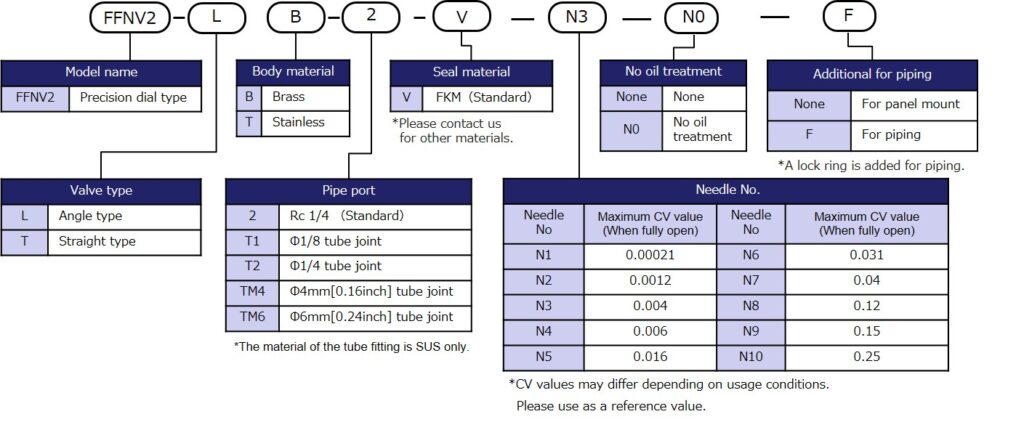

Model designation

Characteristic

Flow characteristics

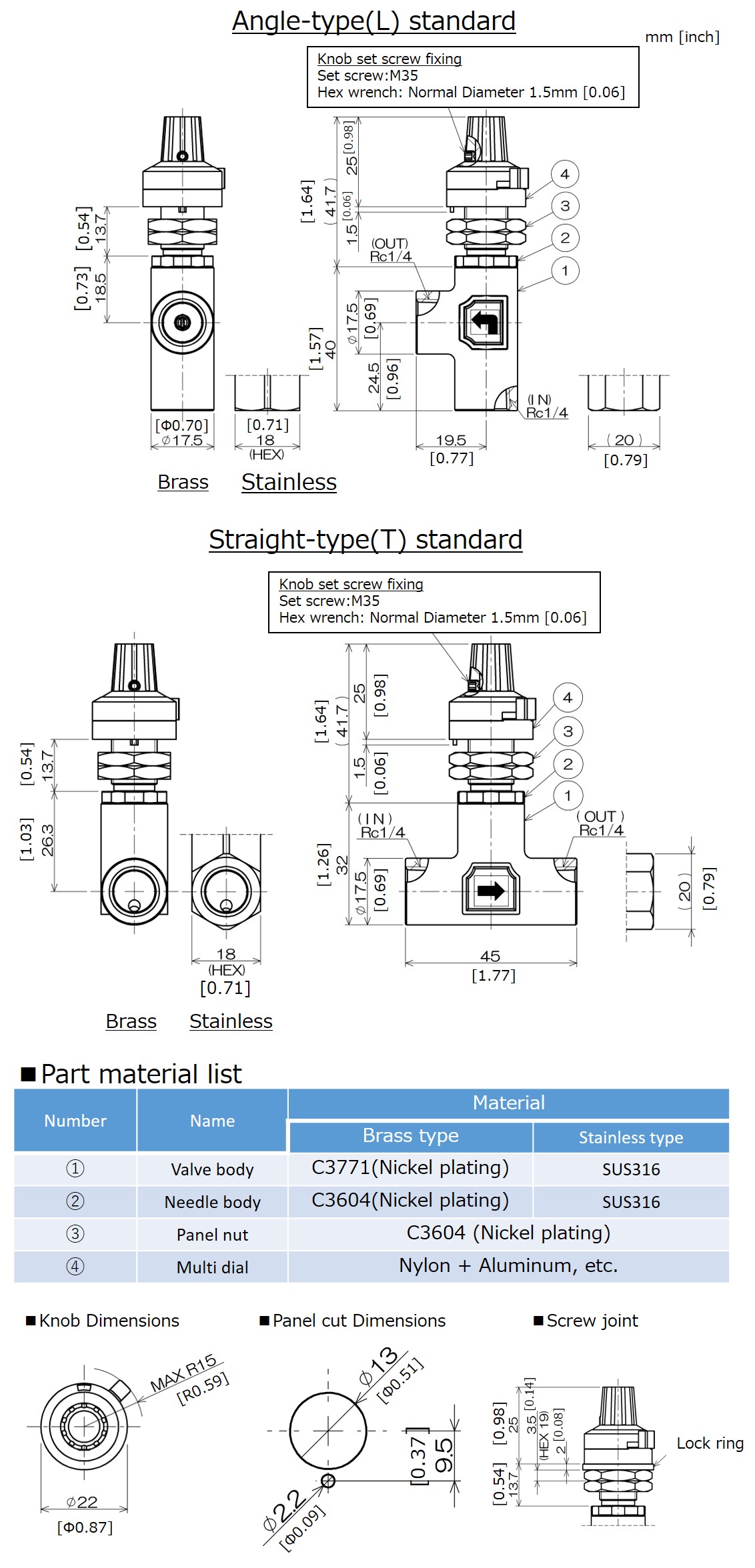

Dimensions
